Cam Follower

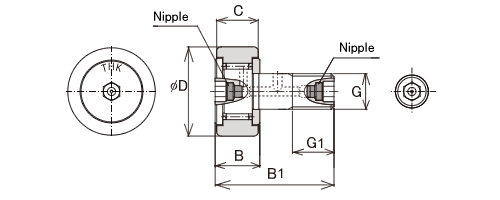

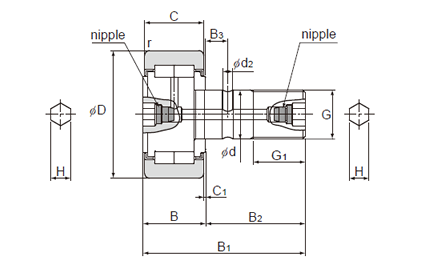

Model CF-AB

CF-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 12-AB 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CF 12-1-AB 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CF 16-AB 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CF 18-AB 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CF 20-AB 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CF 20-1-AB 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CF 24-AB 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CF 24-1-AB 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CF 30-AB 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CF 30-1-AB 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CF 30-2-AB 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

CF-R-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 12R-AB 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CF 12R-1-AB 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CF 16R-AB 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CF 18R-AB 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CF 20R-AB 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CF 20-1R-AB 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CF 24R-AB 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CF 24-1R-AB 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CF 30R-AB 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CF 30-1R-AB 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CF 30-2R-AB 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

CF-AB

Model No. Outer diameter Threaded Outer ring width
D G C
CF 12-AB 30 M12×1.5 14
CF 12-1-AB 32 M12×1.5 14
CF 16-AB 35 M16×1.5 18
CF 18-AB 40 M18×1.5 20
CF 20-AB 52 M20×1.5 24
CF 20-1-AB 47 M20×1.5 24
CF 24-AB 62 M24×1.5 29
CF 24-1-AB 72 M24×1.5 29
CF 30-AB 80 M30×1.5 35
CF 30-1-AB 85 M30×1.5 35
CF 30-2-AB 90 M30×1.5 35

CF-R-AB

Model No. Outer diameter Threaded Outer ring width
D G C
CF 12R-AB 30 M12×1.5 14
CF 12R-1-AB 32 M12×1.5 14
CF 16R-AB 35 M16×1.5 18
CF 18R-AB 40 M18×1.5 20
CF 20R-AB 52 M20×1.5 24
CF 20-1R-AB 47 M20×1.5 24
CF 24R-AB 62 M24×1.5 29
CF 24-1R-AB 72 M24×1.5 29
CF 30R-AB 80 M30×1.5 35
CF 30-1R-AB 85 M30×1.5 35
CF 30-2R-AB 90 M30×1.5 35

Model CFH-AB

CFH-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFH 12-AB 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFH 12-1-AB 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFH 16-AB 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CFH 18-AB 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CFH 20-AB 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFH 20-1-AB 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFH 24-AB 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFH 24-1-AB 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFH 30-AB 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFH 30-1-AB 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFH 30-2-AB 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

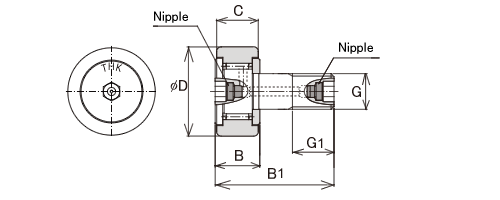

CFH-R-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFH 12R-AB 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFH 12-1R-AB 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFH 16R-AB 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CFH 18R-AB 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CFH 20R-AB 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFH 20-1R-AB 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFH 24R-AB 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFH 24-1R-AB 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFH 30R-AB 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFH 30-1R-AB 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFH 30-2R-AB 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

CFH-AB

Model No. Outer diameter Threaded Outer ring width
D G C
CFH 12-AB 30 M12×1.5 14
CFH 12-1-AB 32 M12×1.5 14
CFH 16-AB 35 M16×1.5 18
CFH 18-AB 40 M18×1.5 20
CFH 20-AB 52 M20×1.5 24
CFH 20-1-AB 47 M20×1.5 24
CFH 24-AB 62 M24×1.5 29
CFH 24-1-AB 72 M24×1.5 29
CFH 30-AB 80 M30×1.5 35
CFH 30-1-AB 85 M30×1.5 35
CFH 30-2-AB 90 M30×1.5 35

CFH-R-AB

Model No. Outer diameter Threaded Outer ring width
D G C
CFH 12R-AB 30 M12×1.5 14
CFH 12-1R-AB 32 M12×1.5 14
CFH 16R-AB 35 M16×1.5 18
CFH 18R-AB 40 M18×1.5 20
CFH 20R-AB 52 M20×1.5 24
CFH 20-1R-AB 47 M20×1.5 24
CFH 24R-AB 62 M24×1.5 29
CFH 24-1R-AB 72 M24×1.5 29
CFH 30R-AB 80 M30×1.5 35
CFH 30-1R-AB 85 M30×1.5 35
CFH 30-2R-AB 90 M30×1.5 35

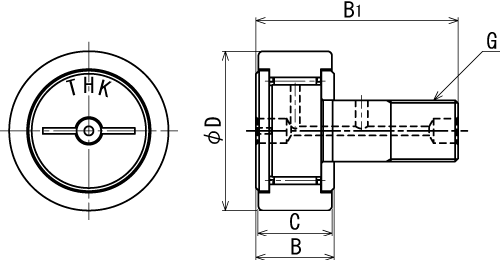

Model CF

CF

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 5 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CF 6 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CF 8 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CF 10 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CF 10-1 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

CF-A

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 3-A 10 M3×0.5 7 8 17 1.47 1.18 2.8 2.5
CF 4-A 12 M4×0.7 8 9 20 2.06 2.05 4 4.3
CF 5-A 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CF 6-A 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CF 8-A 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CF 10-A 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CF 10-1-A 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

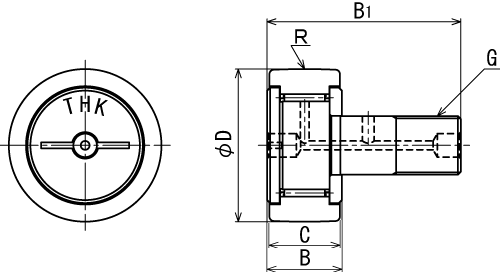

CF-R

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 5R 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CF 6R 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CF 8R 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CF 10R 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CF 10-1R 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

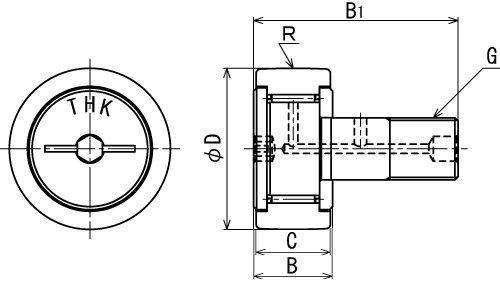

CF-R-A

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF 3R-A 10 M3×0.5 7 8 17 1.47 1.18 2.8 2.5
CF 4R-A 12 M4×0.7 8 9 20 2.06 2.05 4 4.3
CF 5R-A 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CF 6R-A 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CF 8R-A 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CF 10R-A 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CF 10-1R-A 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

CF

Model No. Outer diameter Threaded Outer ring width
D G C
CF 5 13 M5×0.8 9
CF 6 16 M6×1 11
CF 8 19 M8×1.25 11
CF 10 22 M10×1.25 12
CF 10-1 26 M10×1.25 12

CF-A

Model No. Outer diameter Threaded Outer ring width
D G C
CF 3-A 10 M3×0.5 7
CF 4-A 12 M4×0.7 8
CF 5-A 13 M5×0.8 9
CF 6-A 16 M6×1 11
CF 8-A 19 M8×1.25 11
CF 10-A 22 M10×1.25 12
CF 10-1-A 26 M10×1.25 12

CF-R

Model No. Outer diameter Threaded Outer ring width
D G C
CF 5R 13 M5×0.8 9
CF 6R 16 M6×1 11
CF 8R 19 M8×1.25 11
CF 10R 22 M10×1.25 12
CF 10-1R 26 M10×1.25 12

CF-R-A

Model No. Outer diameter Threaded Outer ring width
D G C
CF 3R-A 10 M3×0.5 7
CF 4R-A 12 M4×0.7 8
CF 5R-A 13 M5×0.8 9
CF 6R-A 16 M6×1 11
CF 8R-A 19 M8×1.25 11
CF 10R-A 22 M10×1.25 12
CF 10-1R-A 26 M10×1.25 12

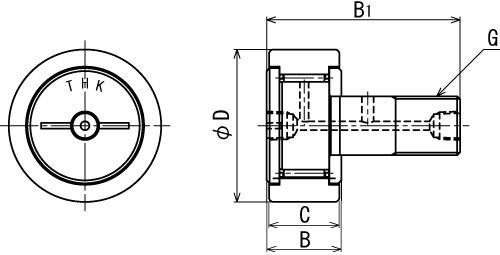

Model CFT

CFT

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFT 6 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CFT 8 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CFT 10 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFT 10-1 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFT 12 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFT 12-1 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFT 16 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CFT 18 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CFT 20 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFT 20-1 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFT 24 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFT 24-1 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFT 30 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFT 30-1 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFT 30-2 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

CFT-R

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall With cage Full-roller type
D G C B1 Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFT 6R 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CFT 8R 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CFT 10R 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFT 10-1R 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFT 12R 30 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFT 12-1R 32 M12×1.5 14 15 40 7.87 9.79 13.4 19.8
CFT 16R 35 M16×1.5 18 19.5 52 12 18.3 20.6 37.6
CFT 18R 40 M18×1.5 20 21.5 58 14.7 25.2 25.2 51.3
CFT 20R 52 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFT 20-1R 47 M20×1.5 24 25.5 66 20.7 34.8 33.2 64.8
CFT 24R 62 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFT 24-1R 72 M24×1.5 29 30.5 80 30.6 53.2 46.7 92.9
CFT 30R 80 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFT 30-1R 85 M30×1.5 35 37 100 45.4 87.6 67.6 145
CFT 30-2R 90 M30×1.5 35 37 100 45.4 87.6 67.6 145

CFT

Model No. Outer diameter Threaded Outer ring width
D G C
CFT 6 16 M6×1 11
CFT 8 19 M8×1.25 11
CFT 10 22 M10×1.25 12
CFT 10-1 26 M10×1.25 12
CFT 12 30 M12×1.5 14
CFT 12-1 32 M12×1.5 14
CFT 16 35 M16×1.5 18
CFT 18 40 M18×1.5 20
CFT 20 52 M20×1.5 24
CFT 20-1 47 M20×1.5 24
CFT 24 62 M24×1.5 29
CFT 24-1 72 M24×1.5 29
CFT 30 80 M30×1.5 35
CFT 30-1 85 M30×1.5 35
CFT 30-2 90 M30×1.5 35

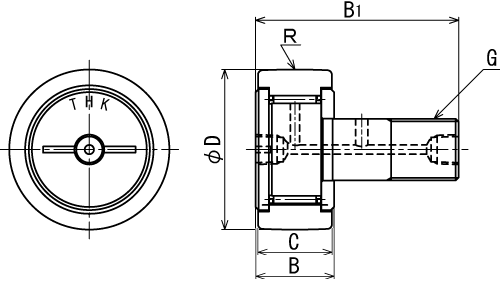

CFT-R

Model No. Outer diameter Threaded Outer ring width
D G C
CFT 6R 16 M6×1 11
CFT 8R 19 M8×1.25 11
CFT 10R 22 M10×1.25 12
CFT 10-1R 26 M10×1.25 12
CFT 12R 30 M12×1.5 14
CFT 12-1R 32 M12×1.5 14
CFT 16R 35 M16×1.5 18
CFT 18R 40 M18×1.5 20
CFT 20R 52 M20×1.5 24
CFT 20-1R 47 M20×1.5 24
CFT 24R 62 M24×1.5 29
CFT 24-1R 72 M24×1.5 29
CFT 30R 80 M30×1.5 35
CFT 30-1R 85 M30×1.5 35
CFT 30-2R 90 M30×1.5 35

Model CFH

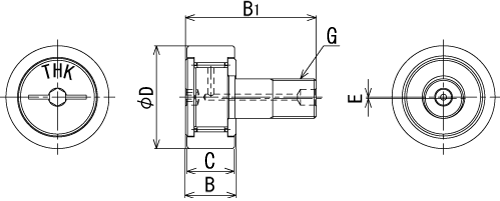

CFH-A

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFH 5-A 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CFH 6-A 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CFH 8-A 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CFH 10-A 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFH 10-1-A 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

CFH-R-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFH 5R-A 13 M5×0.8 9 10 23 3.14 2.77 5.1 5.5
CFH 6R-A 16 M6×1 11 12 28 3.59 3.58 6.94 8.5
CFH 8R-A 19 M8×1.25 11 12 32 4.17 4.65 8.13 11.2
CFH 10R-A 22 M10×1.25 12 13 36 5.33 6.78 9.42 14.3
CFH 10-1R-A 26 M10×1.25 12 13 36 5.33 6.78 9.42 14.3

CFH-A

Model No. Outer diameter Threaded Outer ring width
D G C
CFH 5-A 13 M5×0.8 9
CFH 6-A 16 M6×1 11
CFH 8-A 19 M8×1.25 11
CFH 10-A 22 M10×1.25 12
CFH 10-1-A 26 M10×1.25 12

CFH-R-AB

Model No. Outer diameter Threaded Outer ring width
D G C
CFH 5R-A 13 M5×0.8 9
CFH 6R-A 16 M6×1 11
CFH 8R-A 19 M8×1.25 11
CFH 10R-A 22 M10×1.25 12
CFH 10-1R-A 26 M10×1.25 12

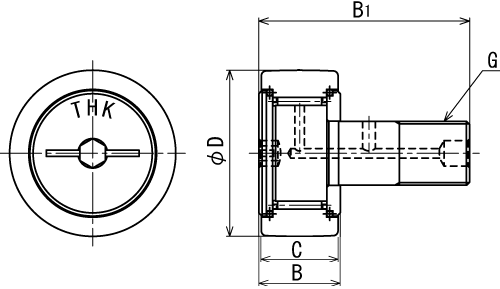

Model CFN

CFN

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length Dynamic rating Static rating
D G C B1 C C0
mm mm mm mm mm kN kN
CFN 5R-A 13 M5×0.8 9 10 23 3.14 2.77
CFN 6R-A 16 M6×1 11 12 28 3.59 3.58
CFN 8R-A 19 M8×1.25 11 12 32 4.17 4.65
CFN 10R-A 22 M10×1.25 12 13 36 5.33 6.78
CFN 12R-A 30 M12×1.5 14 15 40 7.87 9.79

CFN

Model No. Outer diameter Threaded Outer ring width
D G C
CFN 5R-A 13 M5×0.8 9
CFN 6R-A 16 M6×1 11
CFN 8R-A 19 M8×1.25 11
CFN 10R-A 22 M10×1.25 12
CFN 12R-A 30 M12×1.5 14

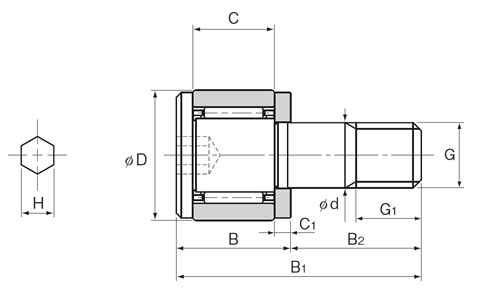

Model CFS

CFS

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CFS 2.5-A 5 M2.5×0.45 3 4.5 9.5 0.41 0.335 1 1.08
CFS 3-A 6 M3×0.5 4 5.5 11.5 0.63 0.61 1.37 1.77
CFS 4-A 8 M4×0.7 5 7 15 1.08 1.08 2.35 3.04
CFS 5-A 10 M5×0.8 6 8 18 1.57 1.86 3.14 4.71
CFS 6-A 12 M6×1.0 7 9.5 21.5 2.06 2.16 4.61 6.27

CFS

Model No. Outer diameter Threaded Outer ring width
D G C
CFS 2.5-A 5 M2.5×0.45 3
CFS 3-A 6 M3×0.5 4
CFS 4-A 8 M4×0.7 5
CFS 5-A 10 M5×0.8 6
CFS 6-A 12 M6×1.0 7

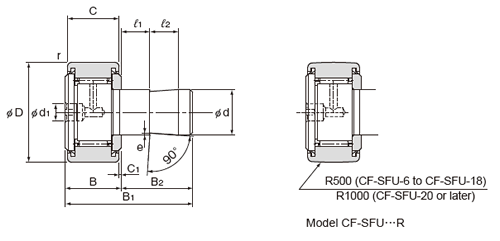

Model CF-SFU

CF-SFU

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF-SFU-6 16 — 11 12 32 3.59 3.58 — —
CF-SFU-8 19 — 11 12 32 4.17 4.65 — —
CF-SFU-10 22 — 12 13 33 5.33 6.78 — —
CF-SFU-10-1 26 — 12 13 33 5.33 6.78 — —
CF-SFU-12 30 — 14 15 35 7.87 9.79 — —
CF-SFU-12-1 32 — 14 15 35 7.87 9.79 — —
CF-SFU-16 35 — 18 19.5 44.5 12 18.3 — —
CF-SFU-18 40 — 20 21.5 46.5 14.7 25.2 — —
CF-SFU-20 52 — 24 25.5 50.5 20.7 34.8 — —
CF-SFU-20-1 47 — 24 25.5 50.5 20.7 34.8 — —

CF-SFU-R

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
CF-SFU-6R 16 — 11 12 32 3.59 3.58 — —
CF-SFU-8R 19 — 11 12 32 4.17 4.65 — —
CF-SFU-10R 22 — 12 13 33 5.33 6.78 — —
CF-SFU-10-1R 26 — 12 13 33 5.33 6.78 — —
CF-SFU-12R 30 — 14 15 35 7.87 9.79 — —
CF-SFU-12-1R 32 — 14 15 35 7.87 9.79 — —
CF-SFU-16R 35 — 18 19.5 44.5 12 18.3 — —
CF-SFU-18R 40 — 20 21.5 46.5 14.7 25.2 — —
CF-SFU-20R 52 — 24 25.5 50.5 20.7 34.8 — —
CF-SFU-20-1R 47 — 24 25.5 50.5 20.7 34.8 — —

CF-SFU

Model No. Outer diameter Threaded Outer ring width
D G C
CF-SFU-6 16 — 11
CF-SFU-8 19 — 11
CF-SFU-10 22 — 12
CF-SFU-10-1 26 — 12
CF-SFU-12 30 — 14
CF-SFU-12-1 32 — 14
CF-SFU-16 35 — 18
CF-SFU-18 40 — 20
CF-SFU-20 52 — 24
CF-SFU-20-1 47 — 24

CF-SFU-R

Model No. Outer diameter Threaded Outer ring width
D G C
CF-SFU-6R 16 — 11
CF-SFU-8R 19 — 11
CF-SFU-10R 22 — 12
CF-SFU-10-1R 26 — 12
CF-SFU-12R 30 — 14
CF-SFU-12-1R 32 — 14
CF-SFU-16R 35 — 18
CF-SFU-18R 40 — 20
CF-SFU-20R 52 — 24
CF-SFU-20-1R 47 — 24

Model NUCF-AB

NUCF-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
NUCF 16-AB 35 M16×1.5 18 19.5 52 23.4 27.2 — —
NUCF 18-AB 40 M18×1.5 20 21.5 58 25.2 30.9 — —
NUCF 20-AB 52 M20×1.5 24 25.5 66 43 58.1 — —
NUCF 20-1-AB 47 M20×1.5 24 25.5 66 38.9 48.9 — —
NUCF 24-AB 62 M24×1.5 28 30.5 80 57.6 74.3 — —
NUCF 24-1-AB 72 M24×1.5 28 30.5 80 63.3 87.5 — —
NUCF 30-AB 80 M30×1.5 35 37 100 94.8 135 — —
NUCF 30-2-AB 90 M30×1.5 35 37 100 94.8 135 — —

NUCF-R-AB

Model No. Main dimensions Basic load rating
Outer diameter Threaded Outer ring width B Overall length With cage Full-roller type
D G C B1
Dynamic rating Static rating Dynamic rating Static rating
C C0 C C0
NUCF 16R-AB 35 M16×1.5 18 19.5 52 23.4 27.2 — —
NUCF 18R-AB 40 M18×1.5 20 21.5 58 25.2 30.9 — —
NUCF 20R-AB 52 M20×1.5 24 25.5 66 43 58.1 — —
NUCF 20R-1-AB 47 M20×1.5 24 25.5 66 38.9 48.9 — —
NUCF 24R-AB 62 M24×1.5 28 30.5 80 57.6 74.3 — —
NUCF 24R-1-AB 72 M24×1.5 28 30.5 80 63.3 87.5 — —
NUCF 30R-AB 80 M30×1.5 35 37 100 94.8 135 — —
NUCF 30R-2-AB 90 M30×1.5 35 37 100 94.8 135 — —

NUCF-AB

Model No. Outer diameter Threaded Outer ring width
D G C
NUCF 16-AB 35 M16×1.5 18
NUCF 18-AB 40 M18×1.5 20
NUCF 20-AB 52 M20×1.5 24
NUCF 20-1-AB 47 M20×1.5 24
NUCF 24-AB 62 M24×1.5 28
NUCF 24-1-AB 72 M24×1.5 28
NUCF 30-AB 80 M30×1.5 35
NUCF 30-2-AB 90 M30×1.5 35

NUCF-R-AB

Model No. Outer diameter Threaded Outer ring width
D G C
NUCF 16R-AB 35 M16×1.5 18
NUCF 18R-AB 40 M18×1.5 20
NUCF 20R-AB 52 M20×1.5 24
NUCF 20R-1-AB 47 M20×1.5 24
NUCF 24R-AB 62 M24×1.5 28
NUCF 24R-1-AB 72 M24×1.5 28
NUCF 30R-AB 80 M30×1.5 35
NUCF 30R-2-AB 90 M30×1.5 35
