LM Guide (Linear Motion Guide)

Caged Ball LM Guide (Linear Motion Guide)

Global Standard size Model SHS

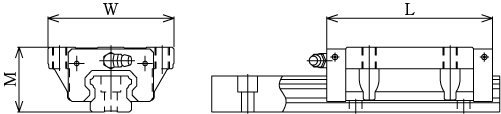

SHS-C

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 15C	24	47	64.4	14.2	24.2
SHS 15CM	24	47	64.4	14.2	24.2
SHS 20C	30	63	79	22.3	38.4
SHS 20CM	30	63	79	22.3	38.4
SHS 25C	36	70	92	31.7	52.4
SHS 25CM	36	70	92	31.7	52.4
SHS 30C	42	90	106	44.8	66.6
SHS 35C	48	100	122	62.3	96.6
SHS 45C	60	120	140	82.8	126
SHS 55C	70	140	171	128	197
SHS 65C	90	170	221	205	320

SHS-LC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 15LC	24	47	79.4	17.2	31.9
SHS 15LCM	24	47	79.4	17.2	31.9
SHS 20LC	30	63	98	28.1	50.3
SHS 20LCM	30	63	98	28.1	50.3
SHS 25LC	36	70	109	36.8	64.7
SHS 25LCM	36	70	109	36.8	64.7
SHS 30LC	42	90	131	54.2	88.8
SHS 35LC	48	100	152	72.9	127
SHS 45LC	60	120	174	100	166
SHS 55LC	70	140	213	161	259
SHS 65LC	90	170	272	253	408

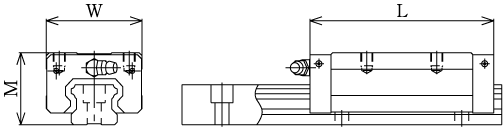

SHS-V

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 15V	24	34	64.4	14.2	24.2
SHS 15VM	24	34	64.4	14.2	24.2
SHS 20V	30	44	79	22.3	38.4
SHS 20VM	30	44	79	22.3	38.4
SHS 25V	36	48	92	31.7	52.4
SHS 25VM	36	48	92	31.7	52.4
SHS 30V	42	60	106	44.8	66.6
SHS 35V	48	70	122	62.3	96.6
SHS 45V	60	86	140	82.8	126
SHS 55V	70	100	171	128	197
SHS 65V	90	126	221	205	320

SHS-LV

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 15LV	24	34	79.4	17.2	31.9
SHS 15LVM	24	34	79.4	17.2	31.9
SHS 20LV	30	44	98	28.1	50.3
SHS 20LVM	30	44	98	28.1	50.3
SHS 25LV	36	48	109	36.8	64.7
SHS 25LVM	36	48	109	36.8	64.7
SHS 30LV	42	60	131	54.2	88.8
SHS 35LV	48	70	152	72.9	127
SHS 45LV	60	86	174	100	166
SHS 55LV	70	100	213	161	259
SHS 65LV	90	126	272	253	408

SHS-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 15R	28	34	64.4	14.2	24.2
SHS 15RM	28	34	64.4	14.2	24.2
SHS 25R	40	48	92	31.7	52.4
SHS 25RM	40	48	92	31.7	52.4
SHS 30R	45	60	106	44.8	66.6
SHS 35R	55	70	122	62.3	96.6
SHS 45R	70	86	140	82.8	126
SHS 55R	80	100	171	128	197

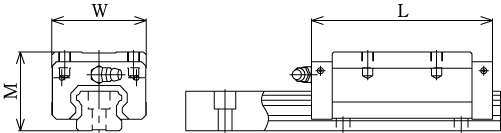

SHS-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHS 25LR	40	48	109	36.8	64.7
SHS 25LRM	40	48	109	36.8	64.7
SHS 30LR	45	60	131	54.2	88.8
SHS 35LR	55	70	152	72.9	127
SHS 45LR	70	86	174	100	166
SHS 55LR	80	100	213	161	259

SHS-C

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 15C	24	47	64.4
SHS 15CM	24	47	64.4
SHS 20C	30	63	79
SHS 20CM	30	63	79
SHS 25C	36	70	92
SHS 25CM	36	70	92
SHS 30C	42	90	106
SHS 35C	48	100	122
SHS 45C	60	120	140
SHS 55C	70	140	171
SHS 65C	90	170	221

SHS-LC

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 15LC	24	47	79.4
SHS 15LCM	24	47	79.4
SHS 20LC	30	63	98
SHS 20LCM	30	63	98
SHS 25LC	36	70	109
SHS 25LCM	36	70	109
SHS 30LC	42	90	131
SHS 35LC	48	100	152
SHS 45LC	60	120	174
SHS 55LC	70	140	213
SHS 65LC	90	170	272

SHS-V

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 15V	24	34	64.4
SHS 15VM	24	34	64.4
SHS 20V	30	44	79
SHS 20VM	30	44	79
SHS 25V	36	48	92
SHS 25VM	36	48	92
SHS 30V	42	60	106
SHS 35V	48	70	122
SHS 45V	60	86	140
SHS 55V	70	100	171
SHS 65V	90	126	221

SHS-LV

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 15LV	24	34	79.4
SHS 15LVM	24	34	79.4
SHS 20LV	30	44	98
SHS 20LVM	30	44	98
SHS 25LV	36	48	109
SHS 25LVM	36	48	109
SHS 30LV	42	60	131
SHS 35LV	48	70	152
SHS 45LV	60	86	174
SHS 55LV	70	100	213
SHS 65LV	90	126	272

SHS-R

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 15R	28	34	64.4
SHS 15RM	28	34	64.4
SHS 25R	40	48	92
SHS 25RM	40	48	92
SHS 30R	45	60	106
SHS 35R	55	70	122
SHS 45R	70	86	140
SHS 55R	80	100	171

SHS-LR

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SHS 25LR	40	48	109
SHS 25LRM	40	48	109
SHS 30LR	45	60	131
SHS 35LR	55	70	152
SHS 45LR	70	86	174
SHS 55LR	80	100	213

Radial Type Model SSR

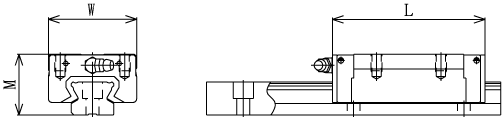

SSR-XW

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SSR 15XW	24	34	56.9	14.7	16.5
SSR 15XWM	24	34	56.9	14.7	16.5
SSR 20XW	28	42	66.5	19.6	23.4
SSR 20XWM	28	42	66.5	19.6	23.4
SSR 25XW	33	48	83	31.5	36.4
SSR 25XWM	33	48	83	31.5	36.4
SSR 30XW	42	60	97	46.5	52.7
SSR 30XWM	42	60	97	46.5	52.7
SSR 35XW	48	70	110.9	64.6	71.6

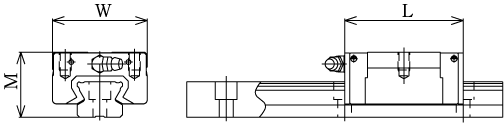

SSR-XV

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SSR 15XV	24	34	40.3	9.1	9.7
SSR 15XVM	24	34	40.3	9.1	9.7
SSR 20XV	28	42	47.7	13.4	14.4
SSR 20XVM	28	42	47.7	13.4	14.4
SSR 25XV	33	48	60	21.7	22.5
SSR 25XVM	33	48	60	21.7	22.5
SSR 30XV	42	60	66.7	34.8	34.4
SSR 30XVM	42	60	66.7	34.8	34.4
SSR 35XV	48	70	77.5	48.3	46.7

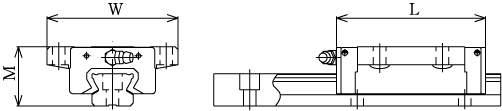

SSR-XTB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SSR 15XTB	24	52	56.9	14.7	16.5
SSR 20XTB	28	59	66.5	19.6	23.4
SSR 25XTB	33	73	83	31.5	36.4
SSR 30XTB	42	90	97	46.5	52.7
SSR 35XTB	48	100	110.9	64.6	71.6

SSR-XSB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SSR 15XSB	24	52	40.3	9.1	9.7
SSR 20XSB	28	59	47.7	13.4	14.4
SSR 25XSB	33	73	60	21.7	22.5
SSR 30XSB	42	90	66.7	34.8	34.4
SSR 35XSB	48	100	77.5	48.3	46.7

SSR-XW

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SSR 15XW	24	34	56.9
SSR 15XWM	24	34	56.9
SSR 20XW	28	42	66.5
SSR 20XWM	28	42	66.5
SSR 25XW	33	48	83
SSR 25XWM	33	48	83
SSR 30XW	42	60	97
SSR 30XWM	42	60	97
SSR 35XW	48	70	110.9

SSR-XV

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SSR 15XV	24	34	40.3
SSR 15XVM	24	34	40.3
SSR 20XV	28	42	47.7
SSR 20XVM	28	42	47.7
SSR 25XV	33	48	60
SSR 25XVM	33	48	60
SSR 30XV	42	60	66.7
SSR 30XVM	42	60	66.7
SSR 35XV	48	70	77.5

SSR-XTB

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SSR 15XTB	24	52	56.9
SSR 20XTB	28	59	66.5
SSR 25XTB	33	73	83
SSR 30XTB	42	90	97
SSR 35XTB	48	100	110.9

SSR-XSB

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SSR 15XSB	24	52	40.3
SSR 20XSB	28	59	47.7
SSR 25XSB	33	73	60
SSR 30XSB	42	90	66.7
SSR 35XSB	48	100	77.5

Ultra-heavy load (radial type) Model SVR

SVR-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 25R	31	50	82.8	48.2	68.1
SVR 30R	38	60	98	67.9	91.6
SVR 35R	44	70	109.5	89.6	116
SVR 45R	52	86	138.2	138	186
SVR 55R	63	100	163.3	177	235
SVR 65R	75	126	186	271	352

SVR-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 25LR	31	50	102	57	86.3
SVR 30LR	38	60	120.5	84	124
SVR 35LR	44	70	135	112	160
SVR 45LR	52	86	171	161	233
SVR 55LR	63	100	200.5	214	309
SVR 65LR	75	126	246	339	484

SVR-C

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 25C	31	72	82.8	48.2	68.1
SVR 30C	38	90	98	67.9	91.6
SVR 35C	44	100	109.5	89.6	116
SVR 45C	52	120	138.2	138	186
SVR 55C	63	140	163.3	177	235
SVR 65C	75	170	186	271	352

SVR-LC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 25LC	31	72	102	57	86.3
SVR 30LC	38	90	120.5	84	124
SVR 35LC	44	100	135	112	160
SVR 45LC	52	120	171	161	233
SVR 55LC	63	140	200.5	214	309
SVR 65LC	75	170	246	339	484

SVR-RH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 35RH	55	70	109.5	89.6	116
SVR 45RH	70	86	138.2	138	186
SVR 55RH	80	100	163.3	177	235

SVR-LRH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 35LRH	55	70	135	112	160
SVR 45LRH	70	86	171	161	233
SVR 55LRH	80	100	200.5	214	309

SVR-CH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 35CH	48	100	109.5	89.6	116
SVR 45CH	60	120	138.2	138	186
SVR 55CH	70	140	163.3	177	235

SVR-LCH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVR 35LCH	48	100	135	112	160
SVR 45LCH	60	120	171	161	233
SVR 55LCH	70	140	200.5	214	309

SVR-R

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 25R	31	50	82.8
SVR 30R	38	60	98
SVR 35R	44	70	109.5
SVR 45R	52	86	138.2
SVR 55R	63	100	163.3
SVR 65R	75	126	186

SVR-LR

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 25LR	31	50	102
SVR 30LR	38	60	120.5
SVR 35LR	44	70	135
SVR 45LR	52	86	171
SVR 55LR	63	100	200.5
SVR 65LR	75	126	246

SVR-C

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 25C	31	72	82.8
SVR 30C	38	90	98
SVR 35C	44	100	109.5
SVR 45C	52	120	138.2
SVR 55C	63	140	163.3
SVR 65C	75	170	186

SVR-LC

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 25LC	31	72	102
SVR 30LC	38	90	120.5
SVR 35LC	44	100	135
SVR 45LC	52	120	171
SVR 55LC	63	140	200.5
SVR 65LC	75	170	246

SVR-RH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 35RH	55	70	109.5
SVR 45RH	70	86	138.2
SVR 55RH	80	100	163.3

SVR-LRH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 35LRH	55	70	135
SVR 45LRH	70	86	171
SVR 55LRH	80	100	200.5

SVR-CH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 35CH	48	100	109.5
SVR 45CH	60	120	138.2
SVR 55CH	70	140	163.3

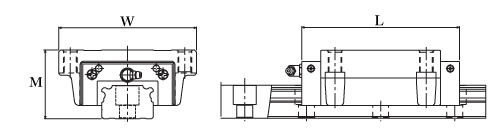

SVR-LCH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVR 35LCH	48	100	135
SVR 45LCH	60	120	171
SVR 55LCH	70	140	200.5

Ultra-heavy load (4-way) Model SVS

SVS-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 25R	31	50	82.8	37	52.2
SVS 30R	38	60	98	52	70.1
SVS 35R	44	70	109.5	68.6	88.6
SVS 45R	52	86	138.2	105	142
SVS 55R	63	100	163.3	136	180
SVS 65R	75	126	186	208	269

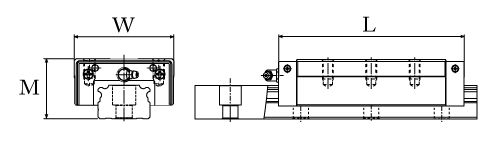

SVS-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 25LR	31	50	102	43.7	66.1
SVS 30LR	38	60	120.5	64.4	95.2
SVS 35LR	44	70	135	86.1	123
SVS 45LR	52	86	171	123	178
SVS 55LR	63	100	200.5	164	237
SVS 65LR	75	126	246	260	370

SVS-C

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 25C	31	72	82.8	37	52.2
SVS 30C	38	90	98	52	70.1
SVS 35C	44	100	109.5	68.6	88.6
SVS 45C	52	120	138.2	105	142
SVS 55C	63	140	163.3	136	180
SVS 65C	75	170	186	208	269

SVS-LC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 25LC	31	72	102	43.7	66.1
SVS 30LC	38	90	120.5	64.4	95.2
SVS 35LC	44	100	135	86.1	123
SVS 45LC	52	120	171	123	178
SVS 55LC	63	140	200.5	164	237
SVS 65LC	75	170	246	260	370

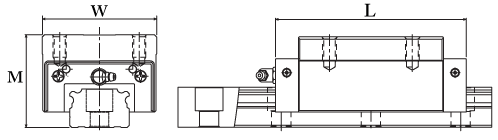

SVS-RH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 35RH	55	70	109.5	68.6	88.6
SVS 45RH	70	86	138.2	105	142
SVS 55RH	80	100	163.3	136	180

SVS-LRH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 35LRH	55	70	135	86.1	123
SVS 45LRH	70	86	171	123	178
SVS 55LRH	80	100	200.5	164	237

SVS-CH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 35CH	48	100	109.5	68.6	88.6
SVS 45CH	60	120	138.2	105	142
SVS 55CH	70	140	163.3	136	180

SVS-LCH

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SVS 35LCH	48	100	135	86.1	123
SVS 45LCH	60	120	171	123	178
SVS 55LCH	70	140	200.5	164	237

SVS-R

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 25R	31	50	82.8
SVS 30R	38	60	98
SVS 35R	44	70	109.5
SVS 45R	52	86	138.2
SVS 55R	63	100	163.3
SVS 65R	75	126	186

SVS-LR

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 25LR	31	50	102
SVS 30LR	38	60	120.5
SVS 35LR	44	70	135
SVS 45LR	52	86	171
SVS 55LR	63	100	200.5
SVS 65LR	75	126	246

SVS-C

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 25C	31	72	82.8
SVS 30C	38	90	98
SVS 35C	44	100	109.5
SVS 45C	52	120	138.2
SVS 55C	63	140	163.3
SVS 65C	75	170	186

SVS-LC

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 25LC	31	72	102
SVS 30LC	38	90	120.5
SVS 35LC	44	100	135
SVS 45LC	52	120	171
SVS 55LC	63	140	200.5
SVS 65LC	75	170	246

SVS-RH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 35RH	55	70	109.5
SVS 45RH	70	86	138.2
SVS 55RH	80	100	163.3

SVS-LRH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 35LRH	55	70	135
SVS 45LRH	70	86	171
SVS 55LRH	80	100	200.5

SVS-CH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 35CH	48	100	109.5
SVS 45CH	60	120	138.2
SVS 55CH	70	140	163.3

SVS-LCH

Model No.	Height	Width	Length
Model No.	mm	mm	mm
SVS 35LCH	48	100	135
SVS 45LCH	60	120	171
SVS 55LCH	70	140	200.5

Wide Rail Model SHW

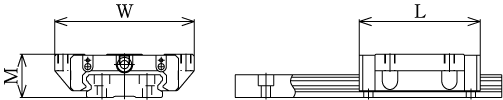

SHW-CA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHW 12CAM	12	40	37	4.31	5.66
SHW 14CAM	14	50	45.5	7.05	8.98
SHW 17CAM	17	60	51	7.65	10.18
SHW 21CA	21	68	59	8.24	12.8
SHW 27CA	27	80	72.8	16	22.7
SHW 35CA	35	120	107	35.5	49.2
SHW 50CA	50	162	141	70.2	91.4

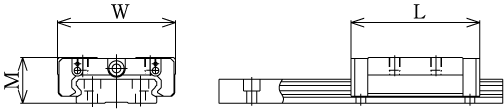

SHW-CR/HR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SHW 12CRM	12	30	37	4.31	5.66
SHW 12HRM	12	30	50.4	5.56	8.68
SHW 14CRM	14	40	45.5	7.05	8.98
SHW 17CRM	17	50	51	7.65	10.18
SHW 21CR	21	54	59	8.24	12.8
SHW 27CR	27	62	72.8	16	22.7
SHW 35CR	35	100	107	35.5	49.2
SHW 50CR	50	130	141	70.2	91.4

SHW-CA

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SHW 12CAM	12	40	37
SHW 14CAM	14	50	45.5
SHW 17CAM	17	60	51
SHW 21CA	21	68	59
SHW 27CA	27	80	72.8
SHW 35CA	35	120	107
SHW 50CA	50	162	141

SHW-CR/HR

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SHW 12CRM	12	30	37
SHW 12HRM	12	30	50.4
SHW 14CRM	14	40	45.5
SHW 17CRM	17	50	51
SHW 21CR	21	54	59
SHW 27CR	27	62	72.8
SHW 35CR	35	100	107
SHW 50CR	50	130	141

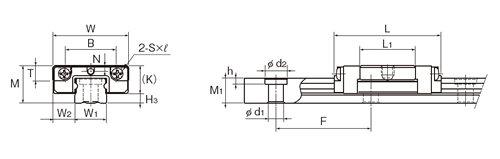

Miniature Model SRS

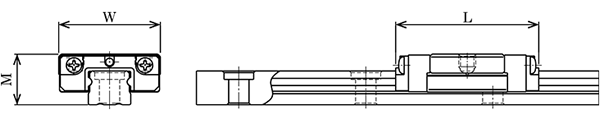

SRS5M

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 5M	6	12	16.9	439	468

SRS5N

SRS 5N

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 5N	6	12	20.1	515	586

SRS5WM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS5WM	6.5	17	22.1	584	703

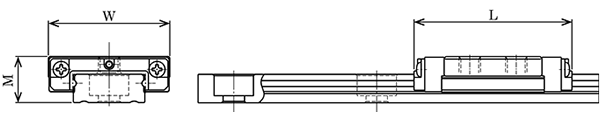

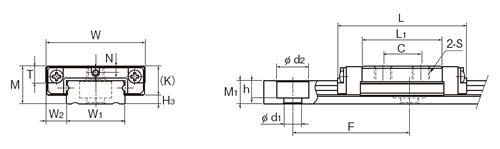

SRS5WN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS5WN	6.5	17	28.1	746	996

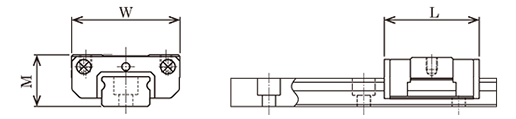

SRS-S

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7S	8	17	19	1.09	0.964
SRS 9XS	10	20	21.5	1.78	1.53
SRS 12S	13	27	25	2.7	2.1
SRS 15S	16	32	32	4.5	3.39

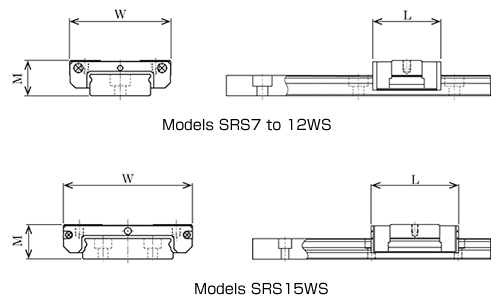

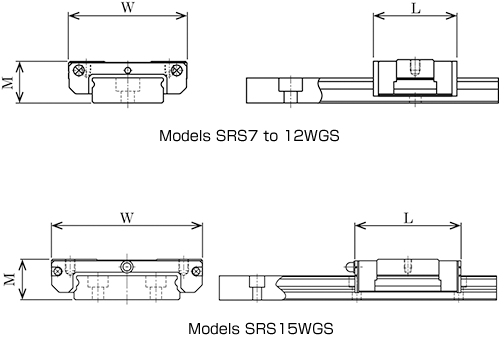

SRS-WS

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7WS	9	25	22.5	1.38	1.35
SRS 9WS	12	30	26.5	2.03	1.84
SRS 12WS	14	40	30.5	3.58	3.15
SRS 15WS	16	60	41.5	6.64	5.94

SRS-M

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7M	8	17	23.4	1.51	1.29
SRS 9XM	10	20	30.8	2.69	2.75
SRS 12M	13	27	34.4	4	3.53
SRS 15M	16	32	43	6.66	5.7
SRS 20M	20	40	50	7.75	9.77
SRS 25M	25	48	77	16.5	20.2

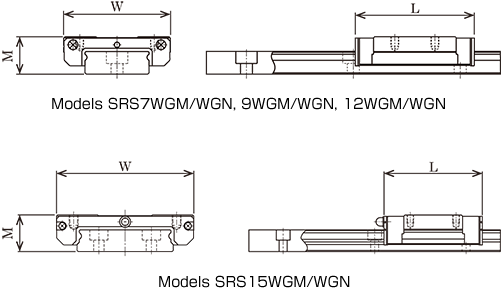

vSRS-WM

SRS-WM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7WM	9	25	31	2.01	1.94
SRS 9WM	12	30	39	3.29	3.34
SRS 12WM	14	40	44.5	5.48	5.3
SRS 15WM	16	60	55.5	9.12	8.55

SRS-N

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7N	8	17	31	2.01	2.31
SRS 9XN	10	20	40.8	3.48	3.98
SRS 12N	13	27	47.1	5.82	5.3
SRS 15N	16	32	60.8	9.71	8.55

SRS-WN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRS 7WN	9	25	—	2.56	3.28
SRS 9WN	12	30	50.7	4.2	4.37
SRS 12WN	14	40	59.5	7.13	7.07
SRS 15WN	16	60	74.5	12.4	12.1

SRS5M

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 5M	6	12	16.9

SRS5N

SRS 5N

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 5N	6	12	20.1

SRS5WM

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS5WM	6.5	17	22.1

SRS5WN

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS5WN	6.5	17	28.1

SRS-S

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7S	8	17	19
SRS 9XS	10	20	21.5
SRS 12S	13	27	25
SRS 15S	16	32	32

SRS-WS

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7WS	9	25	22.5
SRS 9WS	12	30	26.5
SRS 12WS	14	40	30.5
SRS 15WS	16	60	41.5

SRS-M

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7M	8	17	23.4
SRS 9XM	10	20	30.8
SRS 12M	13	27	34.4
SRS 15M	16	32	43
SRS 20M	20	40	50
SRS 25M	25	48	77

vSRS-WM

SRS-WM

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7WM	9	25	31
SRS 9WM	12	30	39
SRS 12WM	14	40	44.5
SRS 15WM	16	60	55.5

SRS-N

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7N	8	17	31
SRS 9XN	10	20	40.8
SRS 12N	13	27	47.1
SRS 15N	16	32	60.8

SRS-WN

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRS 7WN	9	25	—
SRS 9WN	12	30	50.7
SRS 12WN	14	40	59.5
SRS 15WN	16	60	74.5

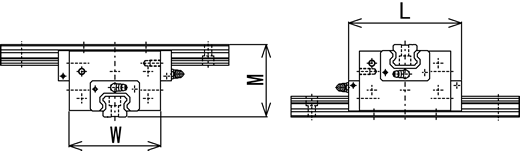

Cross LM Guide Model SCR

SCR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SCR 15S	47	48	64.4	14.2	24.2
SCR 20S	57	59	79	22.3	38.4
SCR 20	57	78	98	28.1	50.3
SCR 25	70	88	109	36.8	64.7
SCR 30	82	105	131	54.2	88.8
SCR 35	95	123	152	72.9	127
SCR 45	118	140	174	100	166
SCR 65	180	226	272	253	408

Cross LM Guide Model SCR

SCR

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SCR 15S	47	48	64.4
SCR 20S	57	59	79
SCR 20	57	78	98
SCR 25	70	88	109
SCR 30	82	105	131
SCR 35	95	123	152
SCR 45	118	140	174
SCR 65	180	226	272

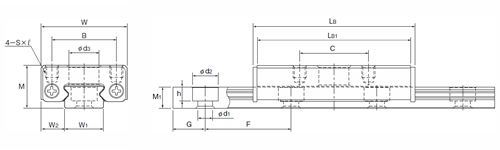

Limited Stroke Model EPF

EPF

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
EPF 7M	8	17	31.6	0.9	1.6
EPF 9M	10	20	37.8	1	1.87
EPF 12M	13	27	43.7	2.26	3.71
EPF 15M	16	32	56.5	3.71	5.88

Limited Stroke Model EPF

EPF

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
EPF 7M	8	17	31.6
EPF 9M	10	20	37.8
EPF 12M	13	27	43.7
EPF 15M	16	32	56.5

Caged Roller LM Guide (Linear Motion Guide)

Ultra-high Rigidity Model SRG

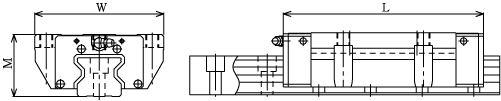

SRG-C

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 25XC	36	70	95.1	27.9	57.5
SRG 30XC	42	90	111	39.3	82.5
SRG 35C	48	100	125	59.1	119
SRG 45C	60	120	155	91.9	192
SRG 55C	70	140	185	131	266
SRG 65C	90	170	244.9	219	441

SRG-LC

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 25XLC	36	70	115	34.2	75
SRG 30XLC	42	90	135	48.3	108
SRG 35LC	48	100	155	76	165
SRG 45LC	60	120	190	115	256
SRG 55LC	70	140	235	167	366
SRG 65LC	90	170	303	278	599
SRG 85LC	110	215	350	497	990
SRG 100LC	120	250	395	601	1170

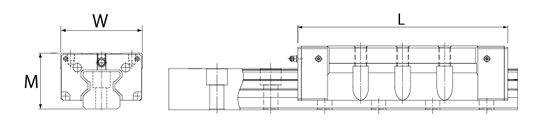

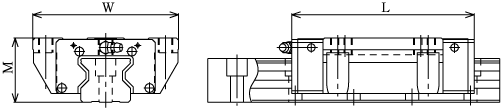

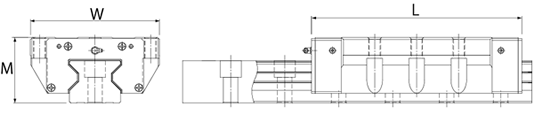

SRG-SLC

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 35SLC	48	100	180.8	87.9	199
SRG 45SLC	60	120	231.5	139	328
SRG 55SLC	70	140	292	210	488
SRG 65SLC	90	170	380	352	811

SRG-R

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 25XR	40	48	95.1	27.9	57.5
SRG 30XR	45	60	111	39.3	82.5
SRG 35R	55	70	125	59.1	119
SRG 45R	70	86	155	91.9	192
SRG 55R	80	100	185	131	266

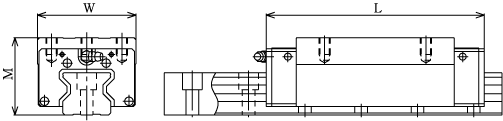

SRG-LR

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 25XLR	40	48	115	34.2	75
SRG 30XLR	45	60	135	48.3	108
SRG 35LR	55	70	155	76	165
SRG 45LR	70	86	190	115	256
SRG 55LR	80	100	235	167	366

SRG-SLR

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 35SLR	55	70	180.8	87.9	199
SRG 45SLR	70	86	231.5	139	328
SRG 55SLR	80	100	292	210	488

SRG-XA

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 15XA	24	47	69	11.3	25.8
SRG 20XA	30	63	86	21	46.9

SRG-XLA

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 20XLA	30	63	106	26.7	63.8

SRG-V

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 15XV	24	34	69	11.3	25.8
SRG 20XV	30	44	86	21	46.9
SRG 65V	90	126	244.9	219	441

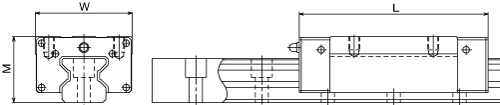

SRG-LV

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 20XLV	30	44	106	26.7	63.8
SRG 65LV	90	126	303	278	599

SRG-SLV

Model No.	Outer dimensions			Basic load rating Radial
	Outer dimensions			Radial
	Height	Width	Length	Dynamic rating	Static rating
	M	W	L	C	C₀
	mm	mm	mm	kN	kN
SRG 65SLV	90	126	380	352	811

SRG-C

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 25XC	36	70	95.1
SRG 30XC	42	90	111
SRG 35C	48	100	125
SRG 45C	60	120	155
SRG 55C	70	140	185
SRG 65C	90	170	244.9

SRG-LC

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 25XLC	36	70	115
SRG 30XLC	42	90	135
SRG 35LC	48	100	155
SRG 45LC	60	120	190
SRG 55LC	70	140	235
SRG 65LC	90	170	303
SRG 85LC	110	215	350
SRG 100LC	120	250	395

SRG-SLC

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 35SLC	48	100	180.8
SRG 45SLC	60	120	231.5
SRG 55SLC	70	140	292
SRG 65SLC	90	170	380

SRG-R

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 25XR	40	48	95.1
SRG 30XR	45	60	111
SRG 35R	55	70	125
SRG 45R	70	86	155
SRG 55R	80	100	185

SRG-LR

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 25XLR	40	48	115
SRG 30XLR	45	60	135
SRG 35LR	55	70	155
SRG 45LR	70	86	190
SRG 55LR	80	100	235

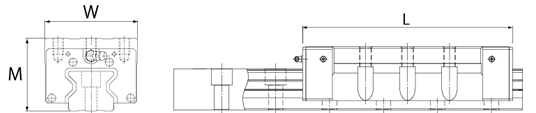

SRG-SLR

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 35SLR	55	70	180.8
SRG 45SLR	70	86	231.5
SRG 55SLR	80	100	292

SRG-XA

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 15XA	24	47	69
SRG 20XA	30	63	86

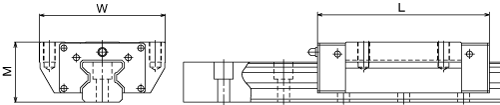

SRG-XLA

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 20XLA	30	63	106

SRG-V

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 15XV	24	34	69
SRG 20XV	30	44	86
SRG 65V	90	126	244.9

SRG-LV

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 20XLV	30	44	106
SRG 65LV	90	126	303

SRG-SLV

Model No.	Height	Width	Length
	M	W	L
	mm	mm	mm
SRG 65SLV	90	126	380

Ultra-high Rigidity (Low center of gravity) Model SRN

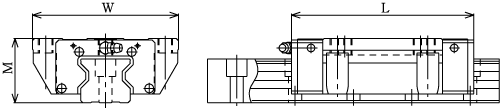

SRN-C

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35C	44	100	125	59.1	119
SRN 45C	52	120	155	91.9	192
SRN 55C	63	140	185	131	266
SRN 65C	75	170	244.9	219	441

SRN-LC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35LC	44	100	155	76	165
SRN 45LC	52	120	190	115	256
SRN 55LC	63	140	235	167	366
SRN 65LC	75	170	303	278	599

SRN-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35R	44	70	125	59.1	119
SRN 45R	52	86	155	91.9	192
SRN 55R	63	100	185	131	266
SRN 65R	75	126	244.9	219	441

SRN-SLC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35SLC	44	100	180.8	87.9	199
SRN 45SLC	52	120	231.5	139	328
SRN 55SLC	63	140	292	210	488
SRN 65SLC	75	170	380	352	811

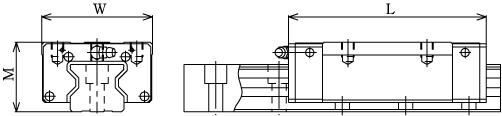

SRN-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35LR	44	70	155	76	165
SRN 45LR	52	86	190	115	256
SRN 55LR	63	100	235	167	366
SRN 65LR	75	126	303	278	599

SRN-SLR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRN 35SLR	44	70	180.8	87.9	199
SRN 45SLR	52	86	231.5	139	328
SRN 55SLR	63	100	292	210	488
SRN 65SLR	75	126	380	352	811

SRN-C

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35C	44	100	125
SRN 45C	52	120	155
SRN 55C	63	140	185
SRN 65C	75	170	244.9

SRN-LC

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35LC	44	100	155
SRN 45LC	52	120	190
SRN 55LC	63	140	235
SRN 65LC	75	170	303

SRN-R

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35R	44	70	125
SRN 45R	52	86	155
SRN 55R	63	100	185
SRN 65R	75	126	244.9

SRN-SLC

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35SLC	44	100	180.8
SRN 45SLC	52	120	231.5
SRN 55SLC	63	140	292
SRN 65SLC	75	170	380

SRN-LR

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35LR	44	70	155
SRN 45LR	52	86	190
SRN 55LR	63	100	235
SRN 65LR	75	126	303

SRN-SLR

Model No.	Height	Width	Length
Model No.	M	W	L
SRN 35SLR	44	70	180.8
SRN 45SLR	52	86	231.5
SRN 55SLR	63	100	292
SRN 65SLR	75	126	380

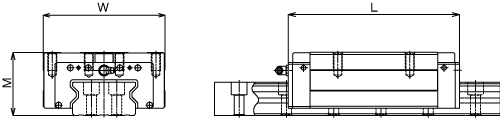

Ultra-high Rigidity (Wide) Model SRW

SRW-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRW 70LR	70	135	190	115	256
SRW 85LR	80	165	235	167	366
SRW 100LR	100	200	303	278	599
SRW 130LR	130	260	350	497	990
SRW 150LR	150	300	395	601	1170

Ultra-high Rigidity (Wide) Model SRW

SRW-LR

Model No.	Height	Width	Length
Model No.	M	W	L
SRW 70LR	70	135	190
SRW 85LR	80	165	235
SRW 100LR	100	200	303
SRW 130LR	130	260	350
SRW 150LR	150	300	395

LM Guide (full-ball type)

Global Standard size Model HSR

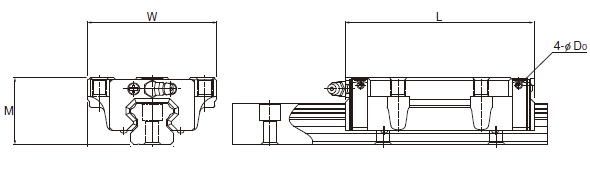

HSR-C/XC

HSR-C-XC

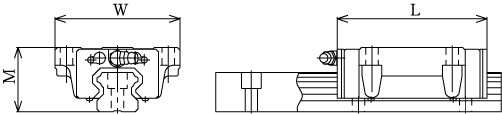

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15C	24	47	56.6	10.9	15.7
HSR 15CM	24	47	56.6	10.9	15.7
HSR 20C	30	63	74	19.8	27.4
HSR 20CM	30	63	74	19.8	27.4
HSR 25C	36	70	83.1	27.6	36.4
HSR 25CM	36	70	83.1	27.6	36.4
HSR 30C	42	90	98	40.5	53.7
HSR 30CM	42	90	98	40.5	53.7
HSR 35C	48	100	109.4	53.9	70.2
HSR 35CM	48	100	109.4	53.9	70.2
HSR 45C	60	120	139	82.2	101
HSR 55C	70	140	163	121	146
HSR 65XC	90	170	190.5	195	228

HSR-LC/XLC

HSR-LC-XLC

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15LC	24	47	74.6	14.2	22.9
HSR 15LCM	24	47	74.6	14.2	22.9
HSR 20LC	30	63	90	23.9	35.8
HSR 20LCM	30	63	90	23.9	35.8
HSR 25LC	36	70	102.2	35.2	51.6
HSR 25LCM	36	70	102.2	35.2	51.6
HSR 30LC	42	90	120.6	48.9	70.2
HSR 30LCM	42	90	120.6	48.9	70.2
HSR 35LC	48	100	134.8	65	91.7
HSR 35LCM	48	100	134.8	65	91.7
HSR 45LC	60	120	170.8	100	135
HSR 55LC	70	140	201.1	148	194
HSR 65XLC	90	170	250	249	323

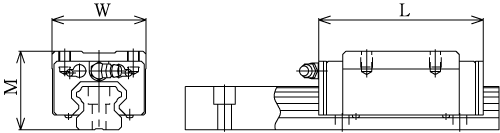

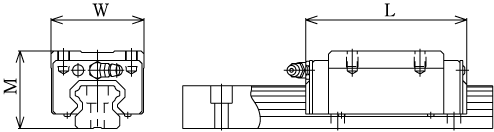

HSR-R-XR

HSR-R/XR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 8RM	11	16	24	1.08	2.16
HSR 10RM	13	20	31	1.96	3.82
HSR 12RM	20	27	45	4.7	8.53
HSR 15R	28	34	56.6	10.9	15.7
HSR 15RM	28	34	56.6	10.9	15.7
HSR 20R	30	44	74	19.8	27.4
HSR 20RM	30	44	74	19.8	27.4
HSR 25R	40	48	83.1	27.6	36.4
HSR 25RM	40	48	83.1	27.6	36.4
HSR 30R	45	60	98	40.5	53.7
HSR 30RM	45	60	98	40.5	53.7
HSR 35R	55	70	109.4	53.9	70.2
HSR 35RM	55	70	109.4	53.9	70.2
HSR 45R	70	86	139	82.2	101
HSR 55R	80	100	163	121	146
HSR 65XR	90	126	190.5	195	228
HSR 85R	110	156	245.6	304	355

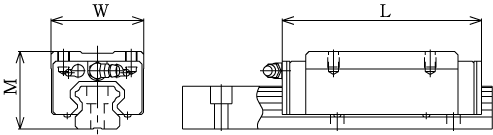

HSR-LR/XLR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15LR	28	34	74.6	14.2	22.9
HSR 15LRM	28	34	74.6	14.2	22.9
HSR 20LR	30	44	90	23.9	35.8
HSR 20LRM	30	44	90	23.9	35.8
HSR 25LR	40	48	102.2	35.2	51.6
HSR 25LRM	40	48	102.2	35.2	51.6
HSR 30LR	45	60	120.6	48.9	70.2
HSR 30LRM	45	60	120.6	48.9	70.2
HSR 35LR	55	70	134.8	65	91.7
HSR 35LRM	55	70	134.8	65	91.7
HSR 45LR	70	86	170.8	100	135
HSR 55LR	80	100	201.1	148	194
HSR 65XLR	90	126	250	249	323
HSR 85LR	110	156	303	367	464

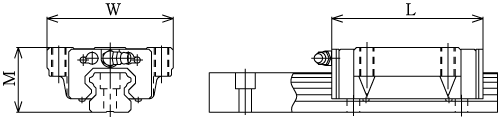

HSR-A

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
HSR 85A	110	215	245.6	304	355

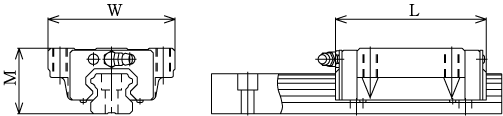

HSR-LA

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
HSR 85LA	110	215	303	367	464

HSR-B

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
HSR 85B	110	215	245.6	304	355

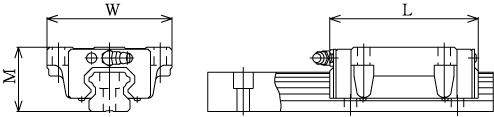

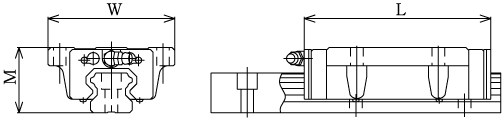

HSR-LB

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
HSR 85LB	110	215	303	367	464

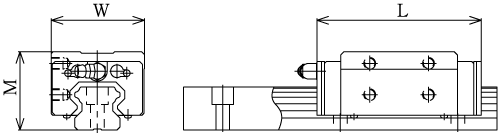

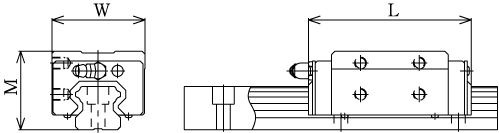

HSR-YR/XYR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15YR	28	33.5	56.6	10.9	15.7
HSR 15YRM	28	33.5	56.6	10.9	15.7
HSR 20YR	30	43.5	74	19.8	27.4
HSR 20YRM	30	43.5	74	19.8	27.4
HSR 25YR	40	47.5	83.1	27.6	36.4
HSR 25YRM	40	47.5	83.1	27.6	36.4
HSR 30YR	45	59.5	98	40.5	53.7
HSR 30YRM	45	59.5	98	40.5	53.7
HSR 35YR	55	69.5	109.4	53.9	70.2
HSR 35YRM	55	69.5	109.4	53.9	70.2
HSR 45YR	70	85.5	139	82.2	101
HSR 45XYR	70	85.5	139	82.2	101
HSR 55YR	80	99.5	163	121	146
HSR 55XYR	80	99.5	163	121	146
HSR 65XYR	90	124.5	190.5	195	228

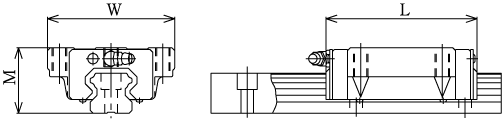

HSR-CA/XCA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20CA	30	63	74	19.8	27.4
HSR 20CAM	30	63	74	19.8	27.4
HSR 25CA	36	70	83.1	27.6	36.4
HSR 25CAM	36	70	83.1	27.6	36.4
HSR 30CA	42	90	98	40.5	53.7
HSR 30CAM	42	90	98	40.5	53.7
HSR 35CA	48	100	109.4	53.9	70.2
HSR 35CAM	48	100	109.4	53.9	70.2
HSR 45CA	60	120	139	82.2	101
HSR 55CA	70	140	163	121	146
HSR 65XCA	90	170	190.5	195	228
HSR 85CA	110	215	245.6	304	355

HSR-CB/XCB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20CB	30	63	74	19.8	27.4
HSR 20CBM	30	63	74	19.8	27.4
HSR 25CB	36	70	83.1	27.6	36.4
HSR 25CBM	36	70	83.1	27.6	36.4
HSR 30CB	42	90	98	40.5	53.7
HSR 30CBM	42	90	98	40.5	53.7
HSR 35CB	48	100	109.4	53.9	70.2
HSR 35CBM	48	100	109.4	53.9	70.2
HSR 45CB	60	120	139	82.2	101
HSR 55CB	70	140	163	121	146
HSR 65XCB	90	170	190.5	195	228
HSR 85CB	110	215	245.6	304	355

HSR-HA/XHA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20HA	30	63	90	23.9	35.8
HSR 20HAM	30	63	90	23.9	35.8
HSR 25HA	36	70	102.2	35.2	51.6
HSR 25HAM	36	70	102.2	35.2	51.6
HSR 30HA	42	90	120.6	48.9	70.2
HSR 30HAM	42	90	120.6	48.9	70.2
HSR 35HA	48	100	134.8	65	91.7
HSR 35HAM	48	100	134.8	65	91.7
HSR 45HA	60	120	170.8	100	135
HSR 55HA	70	140	201.1	148	194
HSR 65XHA	90	170	250	249	323
HSR 85HA	110	215	303	367	464
HSR 100HA	120	250	334	441	540
HSR 120HA	130	290	365	540	653
HSR 150HA	145	350	396	518	728

HSR-HB/XHB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20HB	30	63	90	23.9	35.8
HSR 20HBM	30	63	90	23.9	35.8
HSR 25HB	36	70	102.2	35.2	51.6
HSR 25HBM	36	70	102.2	35.2	51.6
HSR 30HB	42	90	120.6	48.9	70.2
HSR 30HBM	42	90	120.6	48.9	70.2
HSR 35HB	48	100	134.8	65	91.7
HSR 35HBM	48	100	134.8	65	91.7
HSR 45HB	60	120	170.8	100	135
HSR 55HB	70	140	201.1	148	194
HSR 65XHB	90	170	250	249	323
HSR 85HB	110	215	303	367	464
HSR 100HB	120	250	334	441	540
HSR 120HB	130	290	365	540	653
HSR 150HB	145	350	396	518	728

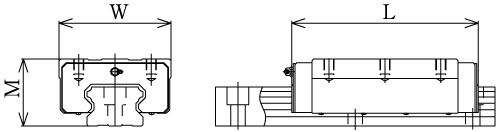

HSR-HR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 100HR	120	200	334	441	540
HSR 120HR	130	220	365	540	653
HSR 150HR	145	266	396	518	728

HSR-C/XC

HSR-C-XC

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15C	24	47	56.6
HSR 15CM	24	47	56.6
HSR 20C	30	63	74
HSR 20CM	30	63	74
HSR 25C	36	70	83.1
HSR 25CM	36	70	83.1
HSR 30C	42	90	98
HSR 30CM	42	90	98
HSR 35C	48	100	109.4
HSR 35CM	48	100	109.4
HSR 45C	60	120	139
HSR 55C	70	140	163
HSR 65XC	90	170	190.5

HSR-LC/XLC

HSR-LC-XLC

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15LC	24	47	74.6
HSR 15LCM	24	47	74.6
HSR 20LC	30	63	90
HSR 20LCM	30	63	90
HSR 25LC	36	70	102.2
HSR 25LCM	36	70	102.2
HSR 30LC	42	90	120.6
HSR 30LCM	42	90	120.6
HSR 35LC	48	100	134.8
HSR 35LCM	48	100	134.8
HSR 45LC	60	120	170.8
HSR 55LC	70	140	201.1
HSR 65XLC	90	170	250

HSR-R-XR

HSR-R/XR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 8RM	11	16	24
HSR 10RM	13	20	31
HSR 12RM	20	27	45
HSR 15R	28	34	56.6
HSR 15RM	28	34	56.6
HSR 20R	30	44	74
HSR 20RM	30	44	74
HSR 25R	40	48	83.1
HSR 25RM	40	48	83.1
HSR 30R	45	60	98
HSR 30RM	45	60	98
HSR 35R	55	70	109.4
HSR 35RM	55	70	109.4
HSR 45R	70	86	139
HSR 55R	80	100	163
HSR 65XR	90	126	190.5
HSR 85R	110	156	245.6

HSR-LR/XLR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15LR	28	34	74.6
HSR 15LRM	28	34	74.6
HSR 20LR	30	44	90
HSR 20LRM	30	44	90
HSR 25LR	40	48	102.2
HSR 25LRM	40	48	102.2
HSR 30LR	45	60	120.6
HSR 30LRM	45	60	120.6
HSR 35LR	55	70	134.8
HSR 35LRM	55	70	134.8
HSR 45LR	70	86	170.8
HSR 55LR	80	100	201.1
HSR 65XLR	90	126	250
HSR 85LR	110	156	303

HSR-A

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 85A	110	215	245.6

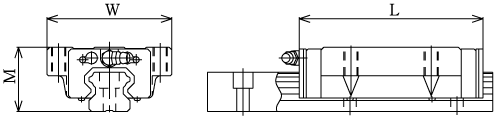

HSR-LA

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 85LA	110	215	303

HSR-B

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 85B	110	215	245.6

HSR-LB

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 85LB	110	215	303

HSR-YR/XYR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15YR	28	33.5	56.6
HSR 15YRM	28	33.5	56.6
HSR 20YR	30	43.5	74
HSR 20YRM	30	43.5	74
HSR 25YR	40	47.5	83.1
HSR 25YRM	40	47.5	83.1
HSR 30YR	45	59.5	98
HSR 30YRM	45	59.5	98
HSR 35YR	55	69.5	109.4
HSR 35YRM	55	69.5	109.4
HSR 45YR	70	85.5	139
HSR 45XYR	70	85.5	139
HSR 55YR	80	99.5	163
HSR 55XYR	80	99.5	163
HSR 65XYR	90	124.5	190.5

HSR-CA/XCA

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20CA	30	63	74
HSR 20CAM	30	63	74
HSR 25CA	36	70	83.1
HSR 25CAM	36	70	83.1
HSR 30CA	42	90	98
HSR 30CAM	42	90	98
HSR 35CA	48	100	109.4
HSR 35CAM	48	100	109.4
HSR 45CA	60	120	139
HSR 55CA	70	140	163
HSR 65XCA	90	170	190.5
HSR 85CA	110	215	245.6

HSR-CB/XCB

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20CB	30	63	74
HSR 20CBM	30	63	74
HSR 25CB	36	70	83.1
HSR 25CBM	36	70	83.1
HSR 30CB	42	90	98
HSR 30CBM	42	90	98
HSR 35CB	48	100	109.4
HSR 35CBM	48	100	109.4
HSR 45CB	60	120	139
HSR 55CB	70	140	163
HSR 65XCB	90	170	190.5
HSR 85CB	110	215	245.6

HSR-HA/XHA

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20HA	30	63	90
HSR 20HAM	30	63	90
HSR 25HA	36	70	102.2
HSR 25HAM	36	70	102.2
HSR 30HA	42	90	120.6
HSR 30HAM	42	90	120.6
HSR 35HA	48	100	134.8
HSR 35HAM	48	100	134.8
HSR 45HA	60	120	170.8
HSR 55HA	70	140	201.1
HSR 65XHA	90	170	250
HSR 85HA	110	215	303
HSR 100HA	120	250	334
HSR 120HA	130	290	365
HSR 150HA	145	350	396

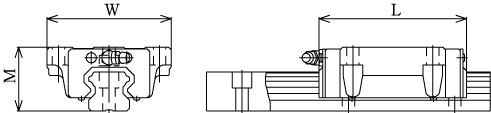

HSR-HB/XHB

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20HB	30	63	90
HSR 20HBM	30	63	90
HSR 25HB	36	70	102.2
HSR 25HBM	36	70	102.2
HSR 30HB	42	90	120.6
HSR 30HBM	42	90	120.6
HSR 35HB	48	100	134.8
HSR 35HBM	48	100	134.8
HSR 45HB	60	120	170.8
HSR 55HB	70	140	201.1
HSR 65XHB	90	170	250
HSR 85HB	110	215	303
HSR 100HB	120	250	334
HSR 120HB	130	290	365
HSR 150HB	145	350	396

HSR-HR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 100HR	120	200	334
HSR 120HR	130	220	365
HSR 150HR	145	266	396

Ultra-heavy load (radial type) Model NR-X

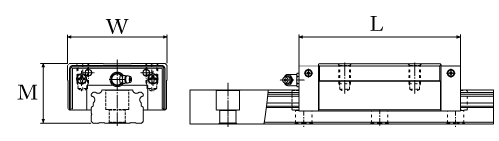

NR-RX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 25RX	31	50	82.8	37.1	68.1
NR 30RX	38	60	98	54.7	98.1
NR 35RX	44	70	109.5	72.4	124.6
NR 45RX	52	86	138.2	110.2	197.6
NR 55RX	63	100	163.3	141.9	250.2
NR 65RX	75	126	186	208.7	351.7

NR-LRX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 25LRX	31	50	102	45.4	90.8
NR 30LRX	38	60	120.5	66.9	130.8
NR 35LRX	44	70	135	89.6	169.1
NR 45LRX	52	86	171	132	255.8
NR 55LRX	63	100	200.5	175.1	338.4
NR 65LRX	75	126	246	268.9	505.5

NR-CX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 25CX	31	72	82.8	37.1	68.1
NR 30CX	38	90	98	54.7	98.1
NR 35CX	44	100	109.5	72.4	124.6
NR 45CX	52	120	138.2	110.2	197.6
NR 55CX	63	140	163.3	141.9	250.2
NR 65CX	75	170	186	208.7	351.7

NR-LCX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 25LCX	31	72	102	45.4	90.8
NR 30LCX	38	90	120.5	66.9	130.8
NR 35LCX	44	100	135	89.6	169.1
NR 45LCX	52	120	171	132	255.8
NR 55LCX	63	140	200.5	175.1	338.4
NR 65LCX	75	170	246	268.9	505.5

NR-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75R	83	145	218	271	610
NR 85R	90	156	246.7	336	751
NR 100R	105	200	286.2	479	1040

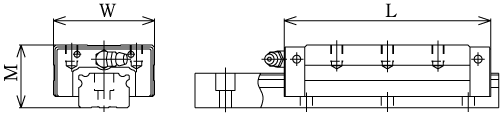

NR-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75LR	83	145	274	355	800
NR 85LR	90	156	302.8	435	972
NR 100LR	105	200	326.2	599	1300

NR-A

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75A	83	195	218	271	610
NR 85A	90	215	246.7	336	751
NR 100A	105	260	286.2	479	1040

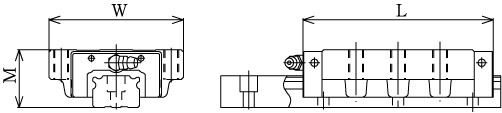

NR-LA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75LA	83	195	274	355	800
NR 85LA	90	215	302.8	435	972
NR 100LA	105	260	326.2	599	1300

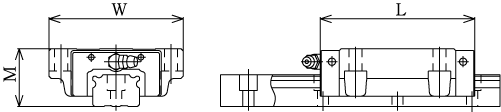

NR-B

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75B	83	195	218	271	610
NR 85B	90	215	246.7	336	751
NR 100B	105	260	286.2	479	1040

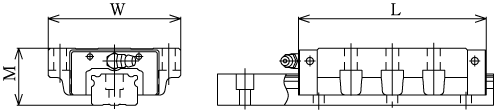

NR-LB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NR 75LB	83	195	274	355	800
NR 85LB	90	215	302.8	435	972
NR 100LB	105	260	326.2	599	1300

NR-RX

Model No.	Height	Width	Length
Model No.	M	W	L
NR 25RX	31	50	82.8
NR 30RX	38	60	98
NR 35RX	44	70	109.5
NR 45RX	52	86	138.2
NR 55RX	63	100	163.3
NR 65RX	75	126	186

NR-LRX

Model No.	Height	Width	Length
Model No.	M	W	L
NR 25LRX	31	50	102
NR 30LRX	38	60	120.5
NR 35LRX	44	70	135
NR 45LRX	52	86	171
NR 55LRX	63	100	200.5
NR 65LRX	75	126	246

NR-CX

Model No.	Height	Width	Length
Model No.	M	W	L
NR 25CX	31	72	82.8
NR 30CX	38	90	98
NR 35CX	44	100	109.5
NR 45CX	52	120	138.2
NR 55CX	63	140	163.3
NR 65CX	75	170	186

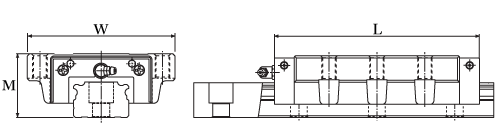

NR-LCX

Model No.	Height	Width	Length
Model No.	M	W	L
NR 25LCX	31	72	102
NR 30LCX	38	90	120.5
NR 35LCX	44	100	135
NR 45LCX	52	120	171
NR 55LCX	63	140	200.5
NR 65LCX	75	170	246

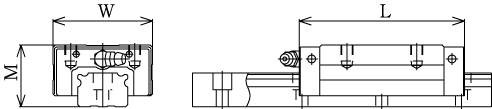

NR-R

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75R	83	145	218
NR 85R	90	156	246.7
NR 100R	105	200	286.2

NR-LR

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75LR	83	145	274
NR 85LR	90	156	302.8
NR 100LR	105	200	326.2

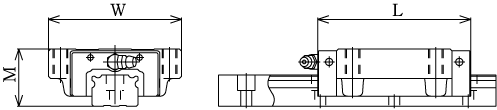

NR-A

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75A	83	195	218
NR 85A	90	215	246.7
NR 100A	105	260	286.2

NR-LA

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75LA	83	195	274
NR 85LA	90	215	302.8
NR 100LA	105	260	326.2

NR-B

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75B	83	195	218
NR 85B	90	215	246.7
NR 100B	105	260	286.2

NR-LB

Model No.	Height	Width	Length
Model No.	M	W	L
NR 75LB	83	195	274
NR 85LB	90	215	302.8
NR 100LB	105	260	326.2

Radial Type Model SR

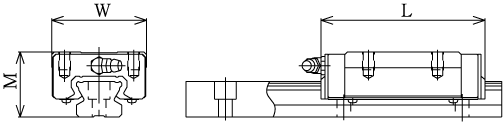

SR-W

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15W	24	34	57	13.8	20.5
SR 15WM	24	34	57	13.8	20.5
SR 20W	28	42	66.2	19.2	28.6
SR 20WM	28	42	66.2	19.2	28.6
SR 25W	33	48	83	30.9	44.7
SR 25WM	33	48	83	30.9	44.7
SR 30W	42	60	96.8	45.6	64.4
SR 30WM	42	60	96.8	45.6	64.4
SR 35W	48	70	111	60.4	81.8
SR 35WM	48	70	111	60.4	81.8
SR 45W	60	86	126	80.4	107
SR 55W	68	100	156	136	179

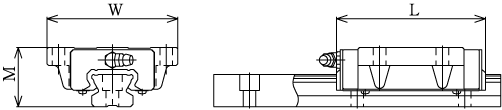

SR-TB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15TB	24	52	57	13.8	20.5
SR 15TBM	24	52	57	13.8	20.5
SR 20TB	28	59	66.2	19.2	28.6
SR 20TBM	28	59	66.2	19.2	28.6
SR 25TB	33	73	83	30.9	44.7
SR 25TBM	33	73	83	30.9	44.7
SR 30TB	42	90	96.8	45.6	64.4
SR 30TBM	42	90	96.8	45.6	64.4
SR 35TB	48	100	111	60.4	81.8
SR 35TBM	48	100	111	60.4	81.8
SR 45TB	60	120	126	80.4	107
SR 55TB	68	140	156	136	179

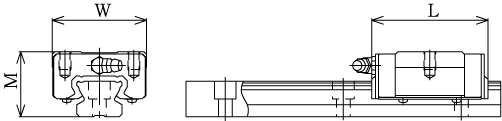

SR-V

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15V	24	34	40.4	9.1	11.7
SR 15VM	24	34	40.4	9.1	11.7
SR 20V	28	42	47.3	13.4	17.2
SR 20VM	28	42	47.3	13.4	17.2
SR 25V	33	48	59.2	21.6	26.8
SR 25VM	33	48	59.2	21.6	26.8
SR 30V	42	60	67.9	29.5	34.4
SR 30VM	42	60	67.9	29.5	34.4
SR 35V	48	70	77.6	40.9	46.7
SR 35VM	48	70	77.6	40.9	46.7

SR-SB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15SB	24	52	40.4	9.1	11.7
SR 15SBM	24	52	40.4	9.1	11.7
SR 20SB	28	59	47.3	13.4	17.2
SR 20SBM	28	59	47.3	13.4	17.2
SR 25SB	33	73	59.2	21.6	26.8
SR 25SBM	33	73	59.2	21.6	26.8
SR 30SB	42	90	67.9	29.5	34.4
SR 30SBM	42	90	67.9	29.5	34.4
SR 35SB	48	100	77.6	40.9	46.7
SR 35SBM	48	100	77.6	40.9	46.7

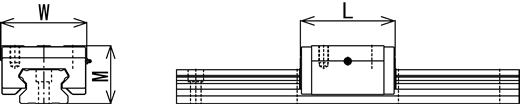

SR-T

SR_T

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 70T	85	126	194.6	226	282
SR 85T	110	156	180	120	224
SR 100T	120	178	200	148	283
SR 120T	110	205	235	279	377
SR 150T	135	250	280	411	537

SR-W

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15W	24	34	57
SR 15WM	24	34	57
SR 20W	28	42	66.2
SR 20WM	28	42	66.2
SR 25W	33	48	83
SR 25WM	33	48	83
SR 30W	42	60	96.8
SR 30WM	42	60	96.8
SR 35W	48	70	111
SR 35WM	48	70	111
SR 45W	60	86	126
SR 55W	68	100	156

SR-TB

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15TB	24	52	57
SR 15TBM	24	52	57
SR 20TB	28	59	66.2
SR 20TBM	28	59	66.2
SR 25TB	33	73	83
SR 25TBM	33	73	83
SR 30TB	42	90	96.8
SR 30TBM	42	90	96.8
SR 35TB	48	100	111
SR 35TBM	48	100	111
SR 45TB	60	120	126
SR 55TB	68	140	156

SR-V

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15V	24	34	40.4
SR 15VM	24	34	40.4
SR 20V	28	42	47.3
SR 20VM	28	42	47.3
SR 25V	33	48	59.2
SR 25VM	33	48	59.2
SR 30V	42	60	67.9
SR 30VM	42	60	67.9
SR 35V	48	70	77.6
SR 35VM	48	70	77.6

SR-SB

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15SB	24	52	40.4
SR 15SBM	24	52	40.4
SR 20SB	28	59	47.3
SR 20SBM	28	59	47.3
SR 25SB	33	73	59.2
SR 25SBM	33	73	59.2
SR 30SB	42	90	67.9
SR 30SBM	42	90	67.9
SR 35SB	48	100	77.6
SR 35SBM	48	100	77.6

SR-T

SR_T

Model No.	Height	Width	Length
Model No.	M	W	L
SR 70T	85	126	194.6
SR 85T	110	156	180
SR 100T	120	178	200
SR 120T	110	205	235
SR 150T	135	250	280

Ultra-heavy load (4-way type) Model NRS-X

NRS-RX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 25RX	31	50	82.8	28.4	52.2
NRS 30RX	38	60	98	41.9	75.2
NRS 35RX	44	70	109.5	55.5	95.5
NRS 45RX	52	86	138.2	84.4	151.4
NRS 55RX	63	100	163.3	108.7	191.6
NRS 65RX	75	126	186	159.8	269.4

NRS-LRX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 25LRX	31	50	102	34.7	69.6
NRS 30LRX	38	60	120.5	51.2	100.2
NRS 35LRX	44	70	135	68.6	129.5
NRS 45LRX	52	86	171	101.1	195.9
NRS 55LRX	63	100	200.5	134.1	259.3
NRS 65LRX	75	126	246	206	387.2

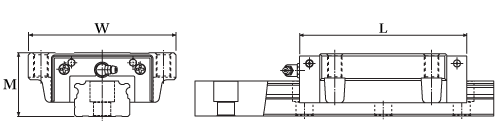

NRS-CX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 25CX	31	72	82.8	28.4	52.2
NRS 30CX	38	90	98	41.9	75.2
NRS 35CX	44	100	109.5	55.5	95.5
NRS 45CX	52	120	138.2	84.4	151.4
NRS 55CX	63	140	163.3	108.7	191.6
NRS 65CX	75	170	186	159.8	269.4

NRS-LCX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 25LCX	31	72	102	34.7	69.6
NRS 30LCX	38	90	120.5	51.2	100.2
NRS 35LCX	44	100	135	68.6	129.5
NRS 45LCX	52	120	171	101.1	195.9
NRS 55LCX	63	140	200.5	134.1	259.3
NRS 65LCX	75	170	246	206	387.2

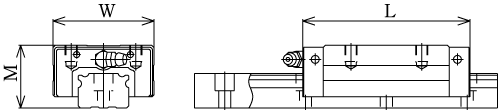

NRS-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75R	83	145	218	212	431
NRS 85R	90	156	246.7	264	531
NRS 100R	105	200	286.2	376	737

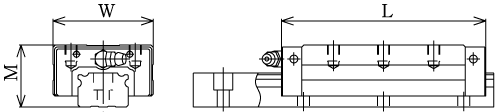

NRS-LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75LR	83	145	274	278	566
NRS 85LR	90	156	302.8	342	687
NRS 100LR	105	200	326.2	470	920

NRS-A

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75A	83	195	218	212	431
NRS 85A	90	215	246.7	264	531
NRS 100A	105	260	286.2	376	737

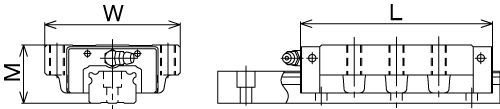

NRS-LA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75LA	83	195	274	278	566
NRS 85LA	90	215	302.8	342	687
NRS 100LA	105	260	326.2	470	920

NRS-B

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75B	83	195	218	212	431
NRS 85B	90	215	246.7	264	531
NRS 100B	105	260	286.2	376	737

NRS-LB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
NRS 75LB	83	195	274	278	566
NRS 85LB	90	215	302.8	342	687
NRS 100LB	105	260	326.2	470	920

NRS-RX

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 25RX	31	50	82.8
NRS 30RX	38	60	98
NRS 35RX	44	70	109.5
NRS 45RX	52	86	138.2
NRS 55RX	63	100	163.3
NRS 65RX	75	126	186

NRS-LRX

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 25LRX	31	50	102
NRS 30LRX	38	60	120.5
NRS 35LRX	44	70	135
NRS 45LRX	52	86	171
NRS 55LRX	63	100	200.5
NRS 65LRX	75	126	246

NRS-CX

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 25CX	31	72	82.8
NRS 30CX	38	90	98
NRS 35CX	44	100	109.5
NRS 45CX	52	120	138.2
NRS 55CX	63	140	163.3
NRS 65CX	75	170	186

NRS-LCX

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 25LCX	31	72	102
NRS 30LCX	38	90	120.5
NRS 35LCX	44	100	135
NRS 45LCX	52	120	171
NRS 55LCX	63	140	200.5
NRS 65LCX	75	170	246

NRS-R

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75R	83	145	218
NRS 85R	90	156	246.7
NRS 100R	105	200	286.2

NRS-LR

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75LR	83	145	274
NRS 85LR	90	156	302.8
NRS 100LR	105	200	326.2

NRS-A

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75A	83	195	218
NRS 85A	90	215	246.7
NRS 100A	105	260	286.2

NRS-LA

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75LA	83	195	274
NRS 85LA	90	215	302.8
NRS 100LA	105	260	326.2

NRS-B

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75B	83	195	218
NRS 85B	90	215	246.7
NRS 100B	105	260	286.2

NRS-LB

Model No.	Height	Width	Length
Model No.	M	W	L
NRS 75LB	83	195	274
NRS 85LB	90	215	302.8
NRS 100LB	105	260	326.2

Wide Rail Model HRW

HRW-CA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HRW 17CA	17	60	50.8	5.53	9.1
HRW 17CAM	17	60	50.8	5.53	9.1
HRW 21CA	21	68	58.8	8.02	12.9
HRW 21CAM	21	68	58.8	8.02	12.9
HRW 27CA	27	80	72.8	14.2	21.6
HRW 27CAM	27	80	72.8	14.2	21.6
HRW 35CA	35	120	106.6	33.8	48.6
HRW 35CAM	35	120	106.6	33.8	48.6
HRW 50CA	50	162	140.5	62.4	86.3
HRW 60CA	60	200	158.9	80.3	109

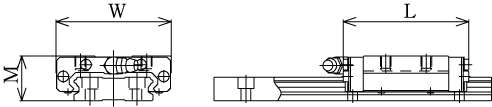

HRW-CR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HRW 12LRM	12	30	37	3.29	7.16
HRW 14LRM	14	40	45.5	5.38	11.4
HRW 17CR	17	50	50.8	5.53	9.1
HRW 17CRM	17	50	50.8	5.53	9.1
HRW 21CR	21	54	58.8	8.02	12.9
HRW 21CRM	21	54	58.8	8.02	12.9
HRW 27CR	27	62	72.8	14.2	21.6
HRW 27CRM	27	62	72.8	14.2	21.6
HRW 35CR	35	100	106.6	33.8	48.6
HRW 35CRM	35	100	106.6	33.8	48.6
HRW 50CR	50	130	140.5	62.4	86.3

HRW-CA

Model No.	Height	Width	Length
Model No.	M	W	L
HRW 17CA	17	60	50.8
HRW 17CAM	17	60	50.8
HRW 21CA	21	68	58.8
HRW 21CAM	21	68	58.8
HRW 27CA	27	80	72.8
HRW 27CAM	27	80	72.8
HRW 35CA	35	120	106.6
HRW 35CAM	35	120	106.6
HRW 50CA	50	162	140.5
HRW 60CA	60	200	158.9

HRW-CR

Model No.	Height	Width	Length
Model No.	M	W	L
HRW 12LRM	12	30	37
HRW 14LRM	14	40	45.5
HRW 17CR	17	50	50.8
HRW 17CRM	17	50	50.8
HRW 21CR	21	54	58.8
HRW 21CRM	21	54	58.8
HRW 27CR	27	62	72.8
HRW 27CRM	27	62	72.8
HRW 35CR	35	100	106.6
HRW 35CRM	35	100	106.6
HRW 50CR	50	130	140.5

Miniature Model SRS-G

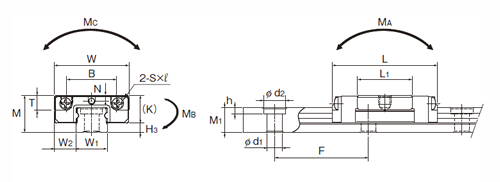

SRS5GM

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
SRS 5GM	6	12	16.9	366	527

SRS5GN

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
SRS 5GN	6	12	20.1	448	703

SRS5WGM

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
SRS 5WGM	6.5	17	22.1	498	820

SRS5WGN

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
SRS 5WGN	6.5	17	28.1	640	1170

SRS-GS

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7GS	8	17	19	0.946	1.16
SRS 9XGS	10	20	21.5	1.37	1.53
SRS 12GS	13	27	25	2.07	2.1
SRS 15GS	16	32	32	4.01	4.24

SRS-WGS

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7WGS	9	25	22.5	1.06	1.35
SRS 9WGS	12	30	26.5	1.73	2.14
SRS 12WGS	14	40	30.5	3.05	3.68
SRS 15WGS	16	60	41.5	5.59	6.78

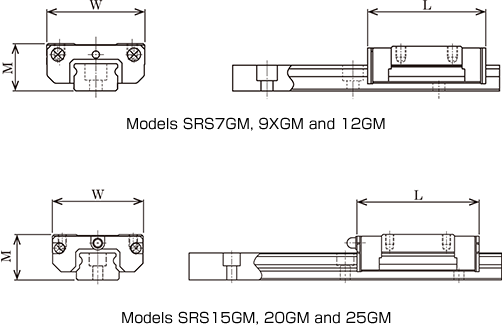

SRS-GM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7GM	8	17	23.4	1.16	1.54
SRS 9XGM	10	20	30.8	2.22	3.06
SRS 12GM	13	27	34.4	3.36	3.55
SRS 15GM	16	32	43	5.59	5.72
SRS 20GM	20	40	50	5.95	9.4
SRS 25GM	25	48	77	13.3	22.3

SRS-WGM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7WGM	9	25	31	1.63	2.51
SRS 9WGM	12	30	39	2.67	3.35
SRS 12WGM	14	40	44.5	4.46	5.32
SRS 15WGM	16	60	55.5	7.43	8.59

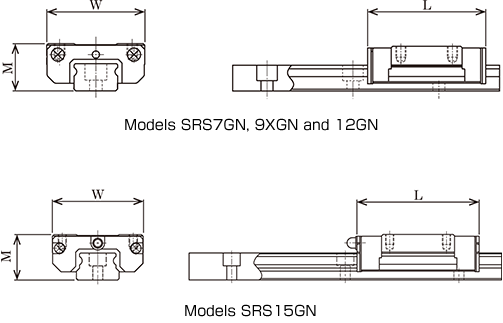

SRS-GN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7GN	8	17	31	1.63	2.51
SRS 9XGN	10	20	40.8	2.94	4.59
SRS 12GN	13	27	47.1	4.72	6.83
SRS 15GN	16	32	60.8	8.27	11.9

SRS-WGN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SRS 7WGN	9	25	40.9	2.12	3.66
SRS 9WGN	12	30	50.7	3.48	5.81
SRS 12WGN	14	40	59.5	5.93	9.46
SRS 15WGN	16	60	74.5	9.87	15.3

SRS5GM

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 5GM	6	12	16.9

SRS5GN

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 5GN	6	12	20.1

SRS5WGM

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 5WGM	6.5	17	22.1

SRS5WGN

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 5WGN	6.5	17	28.1

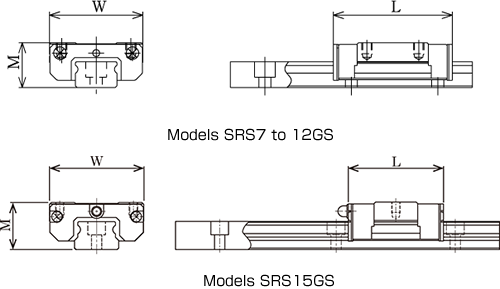

SRS-GS

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7GS	8	17	19
SRS 9XGS	10	20	21.5
SRS 12GS	13	27	25
SRS 15GS	16	32	32

SRS-WGS

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7WGS	9	25	22.5
SRS 9WGS	12	30	26.5
SRS 12WGS	14	40	30.5
SRS 15WGS	16	60	41.5

SRS-GM

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7GM	8	17	23.4
SRS 9XGM	10	20	30.8
SRS 12GM	13	27	34.4
SRS 15GM	16	32	43
SRS 20GM	20	40	50
SRS 25GM	25	48	77

SRS-WGM

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7WGM	9	25	31
SRS 9WGM	12	30	39
SRS 12WGM	14	40	44.5
SRS 15WGM	16	60	55.5

SRS-GN

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7GN	8	17	31
SRS 9XGN	10	20	40.8
SRS 12GN	13	27	47.1
SRS 15GN	16	32	60.8

SRS-WGN

Model No.	Height	Width	Length
Model No.	M	W	L
SRS 7WGN	9	25	40.9
SRS 9WGN	12	30	50.7
SRS 12WGN	14	40	59.5
SRS 15WGN	16	60	74.5

Miniature Model RSR

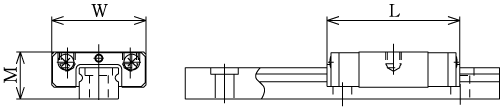

RSR-M

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
RSR 3M	4	8	12	0.18	0.27

RSR-WM

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
RSR 3WM	4.5	12	14.9	0.25	0.47

RSR-N

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 2N	3.2	6	12.4	0.214	0.384
RSR 3N	4	8	16	0.3	0.44

RSR-WN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 2WN	4	10	16.7	0.395	0.682
RSR 3WN	4.5	12	19.9	0.39	0.75

RSR14WVM

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
RSR 14WVM	15	50	50	6.01	9.08

RSR-M

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 3M	4	8	12

RSR-WM

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 3WM	4.5	12	14.9

RSR-N

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 2N	3.2	6	12.4
RSR 3N	4	8	16

RSR-WN

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 2WN	4	10	16.7
RSR 3WN	4.5	12	19.9

RSR14WVM

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 14WVM	15	50	50

Prevent balls from falling out Miniature LM Guide Model RSX

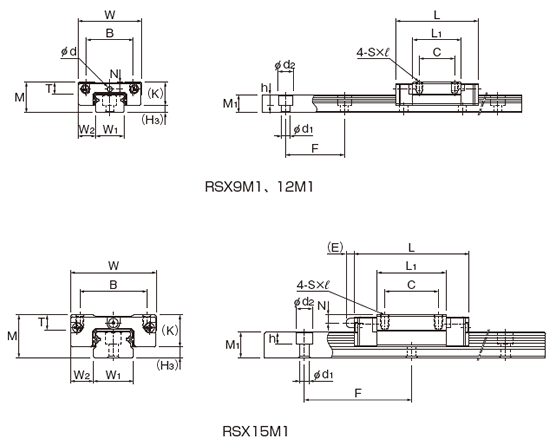

RSX-M

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 5M	6	12	16.9	0.37	0.53
RSX 7M	8	17	23.4	1.16	1.54
RSX 9M	10	20	30.8	2.22	3.06
RSX 12M	13	27	35	3.36	4.21
RSX 15M	16	32	42.9	5.59	6.78

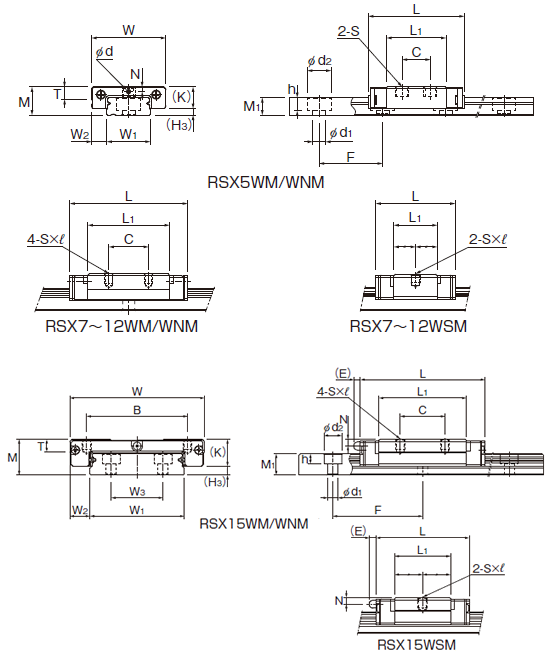

RSX-WM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 5WM	6.5	17	22.1	0.5	0.82
RSX 7WM	9	25	31	1.63	2.51
RSX 9WM	12	30	39	2.8	4.28
RSX 12WM	14	40	44.5	4.46	6.31
RSX 15WM	16	60	55.5	7.43	10.1

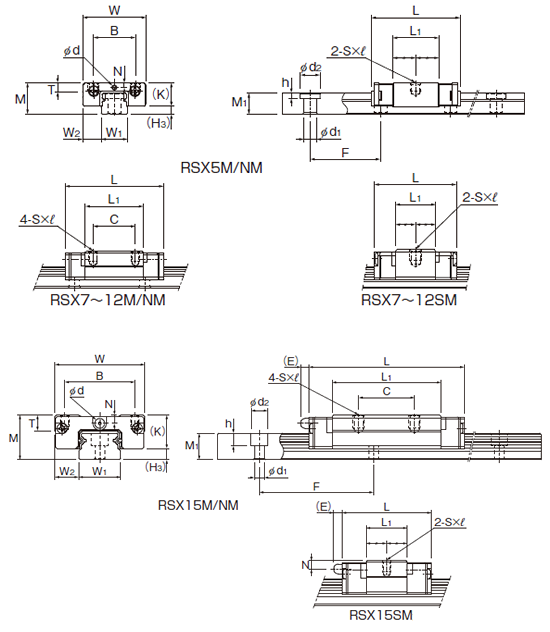

RSX-SM

Type RSX-SM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 7SM	8	17	19	0.95	1.16
RSX 9SM	10	20	21.5	1.37	1.53
RSX 12SM	13	27	25.6	2.07	2.1
RSX 15SM	16	32	31.9	4.01	4.24

RSX-WSM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 7WSM	9	25	22.5	1.06	1.35
RSX 9WSM	12	30	26.5	1.73	2.14
RSX 12WSM	14	40	30.5	3.05	3.68
RSX 15WSM	16	60	41.5	5.59	6.78

RSX-NM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 5NM	6	12	20.1	0.45	0.7
RSX 7NM	8	17	31	1.63	2.51
RSX 9NM	10	20	40.8	2.94	4.59
RSX 12NM	13	27	47.7	4.72	6.83
RSX 15NM	16	32	60.7	8.27	11.8

RSX-WNM

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 5WNM	6.5	17	28.1	0.64	1.17
RSX 7WNM	9	25	40.9	2.12	3.66
RSX 9WNM	12	30	50.7	3.48	5.81
RSX 12WNM	14	40	59.5	5.93	9.46
RSX 15WNM	16	60	74.5	9.87	15.2

RSX-M

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 5M	6	12	16.9
RSX 7M	8	17	23.4
RSX 9M	10	20	30.8
RSX 12M	13	27	35
RSX 15M	16	32	42.9

RSX-WM

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 5WM	6.5	17	22.1
RSX 7WM	9	25	31
RSX 9WM	12	30	39
RSX 12WM	14	40	44.5
RSX 15WM	16	60	55.5

RSX-SM

Type RSX-SM

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 7SM	8	17	19
RSX 9SM	10	20	21.5
RSX 12SM	13	27	25.6
RSX 15SM	16	32	31.9

RSX-WSM

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 7WSM	9	25	22.5
RSX 9WSM	12	30	26.5
RSX 12WSM	14	40	30.5
RSX 15WSM	16	60	41.5

RSX-NM

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 5NM	6	12	20.1
RSX 7NM	8	17	31
RSX 9NM	10	20	40.8
RSX 12NM	13	27	47.7
RSX 15NM	16	32	60.7

RSX-WNM

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 5WNM	6.5	17	28.1
RSX 7WNM	9	25	40.9
RSX 9WNM	12	30	50.7
RSX 12WNM	14	40	59.5
RSX 15WNM	16	60	74.5

Separate (Four-way equal load) Model HR

HR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HR 918	8.5	11.4	45	2.82	3.48
HR 918M	8.5	11.4	45	2.82	3.48
HR 1123	11	13.7	52	4.09	4.93
HR 1123M	11	13.7	52	4.09	4.93
HR 1530	15	19.2	69	7.56	8.77
HR 1530M	15	19.2	69	7.56	8.77
HR 2042	20	26.3	91.6	17	18.2
HR 2042M	20	26.3	91.6	17	18.2
HR 2555	25	33.3	121	33.2	35.1
HR 2555M	25	33.3	121	33.2	35.1
HR 3065	30	40.3	145	42.6	44.4
HR 3575	35	44.9	154.8	53.5	54.8
HR 4085	40	50.4	177.8	78.8	78.9
HR 50105	50	63.4	227	127	123
HR 60125	60	74.4	329	226	232

HR-T

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HR 2042T	20	26.3	110.7	20.8	24.3
HR 2042TM	20	26.3	110.7	20.8	24.3
HR 2555T	25	33.3	146.4	40	45.9
HR 2555TM	25	33.3	146.4	40	45.9
HR 3065T	30	40.3	173.5	51.5	58.1
HR 3575T	35	44.9	182.5	64.4	71.7
HR 4085T	40	50.4	215.9	95.1	103
HR 50105T	50	63.4	274.5	153	161

HR

Model No.	Height	Width	Length
Model No.	M	W	L
HR 918	8.5	11.4	45
HR 918M	8.5	11.4	45
HR 1123	11	13.7	52
HR 1123M	11	13.7	52
HR 1530	15	19.2	69
HR 1530M	15	19.2	69
HR 2042	20	26.3	91.6
HR 2042M	20	26.3	91.6
HR 2555	25	33.3	121
HR 2555M	25	33.3	121
HR 3065	30	40.3	145
HR 3575	35	44.9	154.8
HR 4085	40	50.4	177.8
HR 50105	50	63.4	227
HR 60125	60	74.4	329

HR-T

Model No.	Height	Width	Length
Model No.	M	W	L
HR 2042T	20	26.3	110.7
HR 2042TM	20	26.3	110.7
HR 2555T	25	33.3	146.4
HR 2555TM	25	33.3	146.4
HR 3065T	30	40.3	173.5
HR 3575T	35	44.9	182.5
HR 4085T	40	50.4	215.9
HR 50105T	50	63.4	274.5

Separate (radial type) Model GSR

GSR-T

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
GSR 15T	20	32	59.8	8.42	9.77
GSR 20T	24	43	74	13.6	15.3
GSR 25T	30	50	88	20	22
GSR 30T	33	57	103	27.8	29.9
GSR 35T	38	68	117	37	39.1

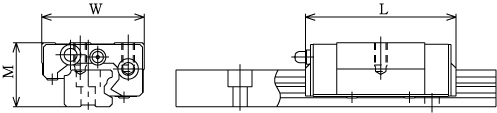

GSR-V

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
GSR 15V	20	32	47.1	6.51	6.77
GSR 20V	24	43	58.1	10.5	10.6
GSR 25V	30	50	69	15.5	15.2

GSR-T-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
GSR 25V-R	30	50	69	15.5	15.2
GSR 25T-R	30	50	88	20	22
GSR 30T-R	33	57	103	27.8	29.9
GSR 35T-R	38	68	117	37	39.1

GSR-T

Model No.	Height	Width	Length
Model No.	M	W	L
GSR 15T	20	32	59.8
GSR 20T	24	43	74
GSR 25T	30	50	88
GSR 30T	33	57	103
GSR 35T	38	68	117

GSR-V

Model No.	Height	Width	Length
Model No.	M	W	L
GSR 15V	20	32	47.1
GSR 20V	24	43	58.1
GSR 25V	30	50	69

GSR-T-R

Model No.	Height	Width	Length
Model No.	M	W	L
GSR 25V-R	30	50	69
GSR 25T-R	30	50	88
GSR 30T-R	33	57	103
GSR 35T-R	38	68	117

Structural Member Rail Model JR

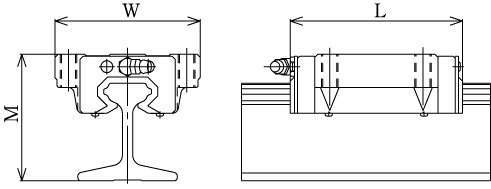

JR-A

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
JR 25A	61	70	83.1	27.6	36.4
JR 35A	73	100	113.6	53.9	70.2
JR 45A	92	120	145	82.2	101
JR 55A	114	140	165	121	146

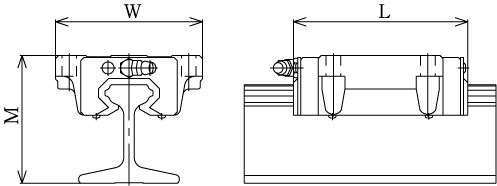

JR-B

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
JR 25B	61	70	83.1	27.6	36.4
JR 35B	73	100	113.6	53.9	70.2
JR 45B	92	120	145	82.2	101
JR 55B	114	140	165	121	146

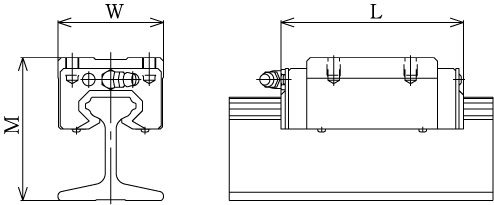

JR-R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
JR 25R	65	48	83.1	27.6	36.4
JR 35R	80	70	113.6	53.9	70.2
JR 45R	102	86	145	82.2	101
JR 55R	124	100	165	121	146

JR-A

Model No.	Height	Width	Length
Model No.	M	W	L
JR 25A	61	70	83.1
JR 35A	73	100	113.6
JR 45A	92	120	145
JR 55A	114	140	165

JR-B

Model No.	Height	Width	Length
Model No.	M	W	L
JR 25B	61	70	83.1
JR 35B	73	100	113.6
JR 45B	92	120	145
JR 55B	114	140	165

JR-R

Model No.	Height	Width	Length
Model No.	M	W	L
JR 25R	65	48	83.1
JR 35R	80	70	113.6
JR 45R	102	86	145
JR 55R	124	100	165

Cross LM Guide Model CSR

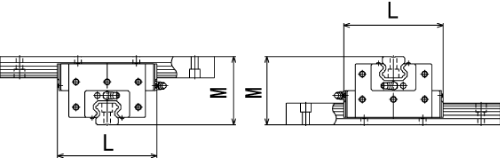

CSR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
CSR 15	47	38.8	56.6	10.9	15.7
CSR 20	57	66.8	90	23.9	35.8
CSR 25	70	78.6	102.2	35.2	51.6
CSR 30	82	93	120.6	48.9	70.2
CSR 35	95	105.8	134.8	65	91.7
CSR 45	118	129.8	170.8	100	135

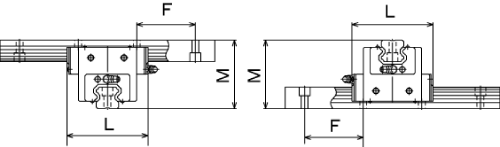

CSR-S

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
CSR 20S	57	50.8	74	19.8	27.4
CSR 25S	70	59.5	83.1	27.6	36.4
CSR 30S	82	70.4	98	40.5	53.7

CSR

Model No.	Height	Width	Length
Model No.	M	W	L
CSR 15	47	38.8	56.6
CSR 20	57	66.8	90
CSR 25	70	78.6	102.2
CSR 30	82	93	120.6
CSR 35	95	105.8	134.8
CSR 45	118	129.8	170.8

CSR-S

Model No.	Height	Width	Length
Model No.	M	W	L
CSR 20S	57	50.8	74
CSR 25S	70	59.5	83.1
CSR 30S	82	70.4	98

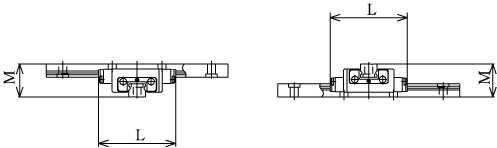

Miniature Cross LM Guide Model MX

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
MX 5M	10	15.2	23.3	0.59	1.1
MX 7WM	14.5	30.2	40.8	2.04	3.21

Miniature Cross LM Guide Model MX

Model No.	Height	Width	Length
Model No.	M	W	L
MX 5M	10	15.2	23.3
MX 7WM	14.5	30.2	40.8

Straight-Curved Guide Model HMG

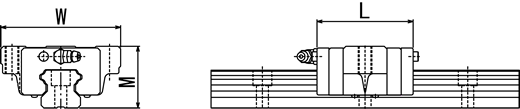

HMG

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HMG 15A	24	47	48	2.56	4.23
HMG 25A	36	70	62.2	9.41	10.8
HMG 35A	48	100	80.6	17.7	19
HMG 45A	60	120	107.6	28.1	29.7
HMG 65A	90	170	144.4	66.2	66.7

Straight-Curved Guide Model HMG

HMG

Model No.	Height	Width	Length
Model No.	M	W	L
HMG 15A	24	47	48
HMG 25A	36	70	62.2
HMG 35A	48	100	80.6
HMG 45A	60	120	107.6
HMG 65A	90	170	144.4

R Guide Model HCR

HCR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HCR 12A+60/100R	18	39	44.6	4.7	8.53
HCR 15A+60/150R	24	47	54.5	6.66	10.8
HCR 15A+60/300R	24	47	55.5	8.33	13.5
HCR 15A+60/400R	24	47	55.8	8.33	13.5
HCR 25A+60/500R	36	70	81.6	19.9	34.4
HCR 25A+60/750R	36	70	82.3	19.9	34.4
HCR 25A+60/1000R	36	70	82.5	19.9	34.4
HCR 35A+60/600R	48	100	107.2	37.3	61.1
HCR 35A+60/800R	48	100	107.5	37.3	61.1
HCR 35A+60/1000R	48	100	108.2	37.3	61.1
HCR 35A+60/1300R	48	100	108.5	37.3	61.1
HCR 45A+60/800R	60	120	136.7	60	95.6
HCR 45A+60/1000R	60	120	137.3	60	95.6
HCR 45A+60/1200R	60	120	137.3	60	95.6
HCR 45A+60/1600R	60	120	138	60	95.6
HCR 65A+60/1000R	90	170	193.8	141	215
HCR 65A+60/1500R	90	170	195.4	141	215
HCR 65A+45/2000R	90	170	195.9	141	215
HCR 65A+45/2500R	90	170	196.5	141	215
HCR 65A+30/3000R	90	170	196.5	141	215

R Guide Model HCR

HCR

Model No.	Height	Width	Length
Model No.	M	W	L
HCR 12A+60/100R	18	39	44.6
HCR 15A+60/150R	24	47	54.5
HCR 15A+60/300R	24	47	55.5
HCR 15A+60/400R	24	47	55.8
HCR 25A+60/500R	36	70	81.6
HCR 25A+60/750R	36	70	82.3
HCR 25A+60/1000R	36	70	82.5
HCR 35A+60/600R	48	100	107.2
HCR 35A+60/800R	48	100	107.5
HCR 35A+60/1000R	48	100	108.2
HCR 35A+60/1300R	48	100	108.5
HCR 45A+60/800R	60	120	136.7
HCR 45A+60/1000R	60	120	137.3
HCR 45A+60/1200R	60	120	137.3
HCR 45A+60/1600R	60	120	138
HCR 65A+60/1000R	90	170	193.8
HCR 65A+60/1500R	90	170	195.4
HCR 65A+45/2000R	90	170	195.9
HCR 65A+45/2500R	90	170	196.5
HCR 65A+30/3000R	90	170	196.5

High Temperature

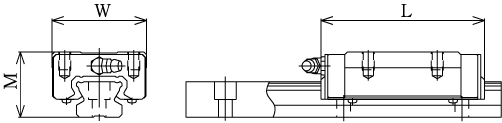

SR-M1W

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15M1W	24	34	57	13.8	20.5
SR 20M1W	28	42	66.2	19.2	28.6
SR 25M1W	33	48	83	30.9	44.7
SR 30M1W	42	60	96.8	45.6	64.4
SR 35M1W	48	70	111	60.4	81.8

SR-M1TB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15M1TB	24	52	57	13.8	20.5
SR 20M1TB	28	59	66.2	19.2	28.6
SR 25M1TB	33	73	83	30.9	44.7
SR 30M1TB	42	90	96.8	45.6	64.4
SR 35M1TB	48	100	111	60.4	81.8

SR-M1V

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15M1V	24	34	40.4	9.1	11.7
SR 20M1V	28	42	47.3	13.4	17.2
SR 25M1V	33	48	59.2	21.6	26.8
SR 30M1V	42	60	67.9	29.5	34.4
SR 35M1V	48	70	77.6	40.9	46.7

SR-M1SB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
SR 15M1SB	24	52	40.4	9.1	11.7
SR 20M1SB	28	59	47.3	13.4	17.2
SR 25M1SB	33	73	59.2	21.6	26.8
SR 30M1SB	42	90	67.9	29.5	34.4
SR 35M1SB	48	100	77.6	40.9	46.7

HSR-M1A

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15M1A	24	47	59.6	10.9	15.7
HSR 20M1A	30	63	76	19.8	27.4
HSR 25M1A	36	70	83.9	27.6	36.4
HSR 30M1A	42	90	98.8	40.5	53.7
HSR 35M1A	48	100	112	53.9	70.2

HSR-M1LA

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20M1LA	30	63	92	23.9	35.8
HSR 25M1LA	36	70	103	35.2	51.6
HSR 30M1LA	42	90	121.4	48.9	70.2
HSR 35M1LA	48	100	137.4	65	91.7

HSR-M1B

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15M1B	24	47	59.6	10.9	15.7
HSR 20M1B	30	63	76	19.8	27.4
HSR 25M1B	36	70	83.9	27.6	36.4
HSR 30M1B	42	90	98.8	40.5	53.7
HSR 35M1B	48	100	112	53.9	70.2

HSR-M1LB

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20M1LB	30	63	92	23.9	35.8
HSR 25M1LB	36	70	103	35.2	51.6
HSR 30M1LB	42	90	121.4	48.9	70.2
HSR 35M1LB	48	100	137.4	65	91.7

HSR-M1R

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15M1R	28	34	59.6	10.9	15.7
HSR 20M1R	30	44	76	19.8	27.4
HSR 25M1R	40	48	83.9	27.6	36.4
HSR 30M1R	45	60	98.8	40.5	53.7
HSR 35M1R	55	70	112	53.9	70.2

HSR-M1LR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 20M1LR	30	44	92	23.9	35.8
HSR 25M1LR	40	48	103	35.2	51.6
HSR 30M1LR	45	60	121.4	48.9	70.2
HSR 35M1LR	55	70	137.4	65	91.7

HSR-M1YR

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15M1YR	28	33.5	59.6	10.9	15.7
HSR 20M1YR	30	43.5	76	19.8	27.4
HSR 25M1YR	40	47.5	83.9	27.6	36.4
HSR 30M1YR	45	59.5	98.8	40.5	53.7
HSR 35M1YR	55	69.5	112	53.9	70.2

RSX-M1

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 9M1	10	20	30.8	2.22	3.06
RSX 12M1	13	27	35	3.36	4.21
RSX 15M1	16	32	42.9	5.59	6.78

RSX-M1N

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 9M1N	10	20	40.8	2.94	4.59
RSX 12M1N	13	27	47.7	4.72	6.83
RSX 15M1N	16	32	60.7	8.27	11.8

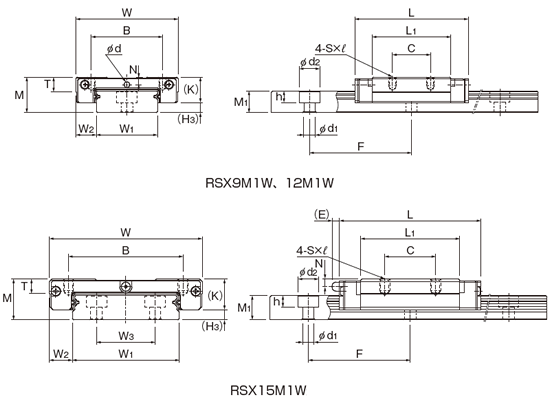

RSX-M1W

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 9M1W	12	30	39	2.8	4.28
RSX 12M1W	14	40	44.5	4.46	6.31
RSX 15M1W	16	60	55.5	7.43	10.1

RSX-M1WN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSX 9M1WN	12	30	50.7	3.48	5.81
RSX 12M1WN	14	40	59.5	5.93	9.46
RSX 15M1WN	16	60	74.5	9.87	15.2

RSR-M1N

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 9M1N	10	20	41	2.6	3.96
RSR 12M1N	13	27	47.7	4.3	6.65
RSR 15M1N	16	32	61	7.16	10.7
RSR 20M1N	25	46	86.3	14.2	20.6

RSR-M1K、M1V

RSR-M1KM1V

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 9M1K	10	20	30.8	1.47	2.25
RSR 12M1V	13	27	35	2.65	4.02
RSR 15M1V	16	32	43	4.41	6.57
RSR 20M1V	25	46	66.5	8.82	12.7

RSR-M1WV

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 9M1WV	12	30	39	2.45	3.92
RSR 12M1WV	14	40	44.5	4.02	6.08
RSR 15M1WV	16	60	55.5	6.66	9.8

RSR-M1WN

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
RSR 9M1WN	12	30	50.7	3.52	5.37
RSR 12M1WN	14	40	59.5	5.96	9.21
RSR 15M1WN	16	60	74.5	9.91	14.9

SR-M1W

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15M1W	24	34	57
SR 20M1W	28	42	66.2
SR 25M1W	33	48	83
SR 30M1W	42	60	96.8
SR 35M1W	48	70	111

SR-M1TB

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15M1TB	24	52	57
SR 20M1TB	28	59	66.2
SR 25M1TB	33	73	83
SR 30M1TB	42	90	96.8
SR 35M1TB	48	100	111

SR-M1V

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15M1V	24	34	40.4
SR 20M1V	28	42	47.3
SR 25M1V	33	48	59.2
SR 30M1V	42	60	67.9
SR 35M1V	48	70	77.6

SR-M1SB

Model No.	Height	Width	Length
Model No.	M	W	L
SR 15M1SB	24	52	40.4
SR 20M1SB	28	59	47.3
SR 25M1SB	33	73	59.2
SR 30M1SB	42	90	67.9
SR 35M1SB	48	100	77.6

HSR-M1A

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15M1A	24	47	59.6
HSR 20M1A	30	63	76
HSR 25M1A	36	70	83.9
HSR 30M1A	42	90	98.8
HSR 35M1A	48	100	112

HSR-M1LA

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20M1LA	30	63	92
HSR 25M1LA	36	70	103
HSR 30M1LA	42	90	121.4
HSR 35M1LA	48	100	137.4

HSR-M1B

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15M1B	24	47	59.6
HSR 20M1B	30	63	76
HSR 25M1B	36	70	83.9
HSR 30M1B	42	90	98.8
HSR 35M1B	48	100	112

HSR-M1LB

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20M1LB	30	63	92
HSR 25M1LB	36	70	103
HSR 30M1LB	42	90	121.4
HSR 35M1LB	48	100	137.4

HSR-M1R

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15M1R	28	34	59.6
HSR 20M1R	30	44	76
HSR 25M1R	40	48	83.9
HSR 30M1R	45	60	98.8
HSR 35M1R	55	70	112

HSR-M1LR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 20M1LR	30	44	92
HSR 25M1LR	40	48	103
HSR 30M1LR	45	60	121.4
HSR 35M1LR	55	70	137.4

HSR-M1YR

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15M1YR	28	33.5	59.6
HSR 20M1YR	30	43.5	76
HSR 25M1YR	40	47.5	83.9
HSR 30M1YR	45	59.5	98.8
HSR 35M1YR	55	69.5	112

RSX-M1

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 9M1	10	20	30.8
RSX 12M1	13	27	35
RSX 15M1	16	32	42.9

RSX-M1N

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 9M1N	10	20	40.8
RSX 12M1N	13	27	47.7
RSX 15M1N	16	32	60.7

RSX-M1W

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 9M1W	12	30	39
RSX 12M1W	14	40	44.5
RSX 15M1W	16	60	55.5

RSX-M1WN

Model No.	Height	Width	Length
Model No.	M	W	L
RSX 9M1WN	12	30	50.7
RSX 12M1WN	14	40	59.5
RSX 15M1WN	16	60	74.5

RSR-M1N

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 9M1N	10	20	41
RSR 12M1N	13	27	47.7
RSR 15M1N	16	32	61
RSR 20M1N	25	46	86.3

RSR-M1K、M1V

RSR-M1KM1V

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 9M1K	10	20	30.8
RSR 12M1V	13	27	35
RSR 15M1V	16	32	43
RSR 20M1V	25	46	66.5

RSR-M1WV

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 9M1WV	12	30	39
RSR 12M1WV	14	40	44.5
RSR 15M1WV	16	60	55.5

RSR-M1WN

Model No.	Height	Width	Length
Model No.	M	W	L
RSR 9M1WN	12	30	50.7
RSR 12M1WN	14	40	59.5
RSR 15M1WN	16	60	74.5

High Corrosion Resistance

HSR-M2A

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	M	W	L	C	C₀
HSR 15M2A	24	47	56.6	2.11	2.04
HSR 20M2A	30	63	74	3.89	3.57
HSR 25M2A	36	70	83.1	5.57	5.15

HSR-M2A

Model No.	Height	Width	Length
Model No.	M	W	L
HSR 15M2A	24	47	56.6
HSR 20M2A	30	63	74
HSR 25M2A	36	70	83.1

For Medium-to-Low Vacuum HSR-M1VV

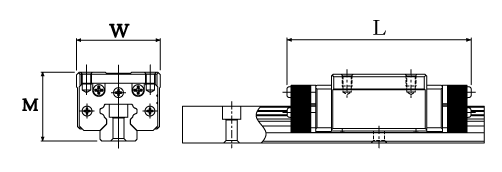

HSR-M1VV

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
				C	C₀
HSR15M1R-VV	28	34	75	10.9	15.7

HSR-M1VV

Model No.	Height	Width	Length
Model No.	M	W	L
HSR15M1R-VV	28	34	75

LM Guide (Linear Motion Guide)

Caged Ball LM Guide (Linear Motion Guide)

Global Standard size Model SHS

Radial Type Model SSR

Ultra-heavy load (radial type) Model SVR

Ultra-heavy load (4-way) Model SVS

Wide Rail Model SHW

Miniature Model SRS

Cross LM Guide Model SCR

Limited Stroke Model EPF

Caged Roller LM Guide (Linear Motion Guide)

Ultra-high Rigidity Model SRG

Ultra-high Rigidity (Low center of gravity) Model SRN

Ultra-high Rigidity (Wide) Model SRW

LM Guide (full-ball type)

Global Standard size Model HSR

Ultra-heavy load (radial type) Model NR-X

Radial Type Model SR

Ultra-heavy load (4-way type) Model NRS-X

Wide Rail Model HRW

Miniature Model SRS-G

Miniature Model RSR

Prevent balls from falling out Miniature LM Guide Model RSX

Separate (Four-way equal load) Model HR

Separate (radial type) Model GSR

Structural Member Rail Model JR

Cross LM Guide Model CSR

Miniature Cross LM Guide Model MX

Straight-Curved Guide Model HMG

R Guide Model HCR

High Temperature

High Corrosion Resistance

For Medium-to-Low Vacuum HSR-M1VV

Related Products

Ball Spline

LM Guide Actuator

LM Stroke

Linear Bushing

Cross-Roller Guide

Send us mail

Contact
